ISL6615AIBZ-T - Renesas Electronics

Description: The ISL6615A is a high-speed MOSFET driver optimized to drive upper and lower power N-Channel MOSFETs in a synchronous rectified buck converter topology. This driver, combined with an Intersil Digital or Analog multiphase PWM controller, forms a complete high frequency and high efficiency voltage regulator. The ISL6615A drives both upper and lower gates over a range of 4. 5V to 13. 2V. This drive-voltage provides the flexibility necessary to optimize applications involving trade-offs between gate charge and

Download ISL6615AIBZ-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

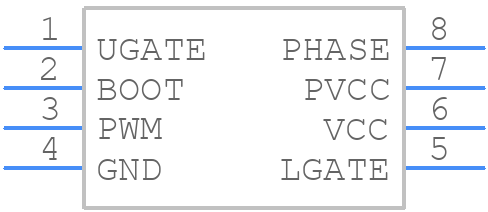

ISL6615AIBZ-T - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ISL6615AIBZ-T - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - M8.15-ren4
click to zoom
3D Models
ISL6615AIBZ-T - Renesas Electronics - 3D model - Small Outline Packages - M8.15-ren4
click to zoom

ISL6615AIBZ-T Details

  • Manufacturer Part Number:

    ISL6615AIBZ-T

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOICN

  • Package Description:

    ROHS COMPLIANT, PLASTIC, MS-012AA, SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    M8.15

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • High Side Driver:

    YES

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    AND GATE BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Peak Current Limit-Nom:

    6 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    13.2 V

  • Supply Voltage-Min:

    6.8 V

  • Supply Voltage-Nom:

    12 V

  • Supply Voltage1-Max:

    12 V

  • Supply Voltage1-Min:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

ISL6615AIBZ-T Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the ISL6615AIBZ-T involves placing the device close to the power components, using a solid ground plane, and minimizing the length of the traces between the device and the power components. Additionally, it is recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to reduce noise and improve thermal performance.
  • The selection of external components for the ISL6615AIBZ-T depends on the specific application requirements, such as the output voltage, output current, and switching frequency. Renesas provides a component selection guide in the datasheet, which can be used to select the right components. Additionally, online tools such as the Renesas PowerNavigator can be used to simulate and optimize the design.
  • The maximum operating temperature range for the ISL6615AIBZ-T is -40°C to +125°C. However, the device can be operated at a reduced temperature range depending on the specific application requirements.
  • The ISL6615AIBZ-T has a built-in overcurrent protection feature that can be enabled by connecting the OCP pin to a resistor and a capacitor. The value of the resistor and capacitor determines the overcurrent threshold and response time. The datasheet provides more information on how to implement overcurrent protection using the ISL6615AIBZ-T.
  • Yes, the ISL6615AIBZ-T can be used in a synchronous buck converter configuration. The device has a built-in synchronous rectifier driver that can be used to drive an external N-channel MOSFET as a synchronous rectifier. This can improve efficiency and reduce power losses in the converter.
