Description:The ISL6615A is a high-speed MOSFET driver optimized to drive upper and lower power N-Channel MOSFETs in a synchronous rectified buck converter topology. This driver, combined with an Intersil Digital or Analog multiphase PWM controller, forms a complete high frequency and high efficiency voltage regulator. The ISL6615A drives both upper and lower gates over a range of 4. 5V to 13. 2V. This drive-voltage provides the flexibility necessary to optimize applications involving trade-offs between gate charge and
The recommended PCB layout for optimal performance involves keeping the high-current paths short and wide, using a solid ground plane, and placing the input and output capacitors close to the IC. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the application note.
The selection of input and output capacitors depends on the specific requirements of your design, such as the input voltage, output voltage, and output current. In general, low-ESR capacitors with high ripple current ratings are recommended. The application note provides guidelines for selecting the right capacitors, and it's also recommended to consult with capacitor manufacturers for specific recommendations.
The maximum operating temperature range for the ISL6615AIRZ-T is -40°C to +125°C. However, the device's performance and reliability may be affected at extreme temperatures. It's essential to ensure that the device is operated within the recommended temperature range for optimal performance and reliability.
The ISL6615AIRZ-T has built-in OCP and OVP features. To implement OCP, you need to set the OCP threshold using the OCSET pin. For OVP, you need to set the OVP threshold using the VSENSE pin. The application note provides detailed guidelines for implementing OCP and OVP in your design.
The recommended input voltage range for the ISL6615AIRZ-T is 4.5V to 14V. However, the device can operate with input voltages as low as 3.3V and as high as 15V, but with reduced performance and efficiency.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6615AIRZ-T Overview

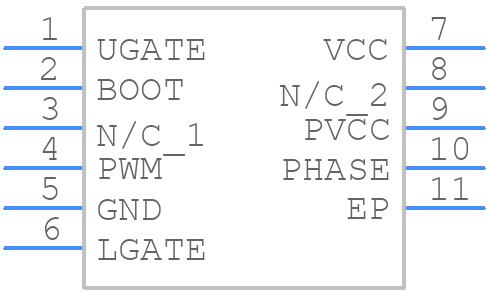

Use the download button to access the ISL6615AIRZ-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL66,
or try a keyword search, such as MOSFET Drivers
