Description:The ISL6615 is a high-speed MOSFET driver optimized to drive upper and lower power N-Channel MOSFETs in a synchronous rectified buck converter topology. This driver, combined with an Intersil Digital or Analog multiphase PWM controller, forms a complete high frequency and high efficiency voltage regulator. The ISL6615 drives both upper and lower gates over a range of 4. 5V to 13. 2V. This drive-voltage provides the flexibility necessary to optimize applications involving trade-offs between gate charge and c
The recommended PCB layout for the ISL6615IRZ-T involves placing the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it is recommended to use a separate power plane for the input and output voltages to reduce noise and improve performance.
The selection of input and output capacitors for the ISL6615IRZ-T depends on the specific application requirements. In general, it is recommended to use low-ESR capacitors with a high ripple current rating. The input capacitor should be able to handle the input voltage and current, while the output capacitor should be able to handle the output voltage and current. The datasheet provides guidelines for capacitor selection, but it is recommended to consult with a capacitor manufacturer for specific recommendations.
The maximum operating temperature range for the ISL6615IRZ-T is -40°C to +125°C. However, the device's performance and reliability may be affected at extreme temperatures. It is recommended to consult with the datasheet and application notes for specific temperature-related guidelines.
Troubleshooting issues with the ISL6615IRZ-T involves identifying the root cause of the problem. Common issues include incorrect PCB layout, inadequate decoupling, or incorrect component selection. It is recommended to consult with the datasheet, application notes, and technical support resources from Renesas Electronics Corporation for guidance on troubleshooting and resolving issues.
Yes, the ISL6615IRZ-T is suitable for high-reliability and high-availability applications. The device is designed to meet the requirements of industrial and automotive applications, and it has undergone rigorous testing and qualification to ensure its reliability and performance. However, it is recommended to consult with Renesas Electronics Corporation for specific guidance on using the device in high-reliability or high-availability applications.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6615IRZ-T Overview

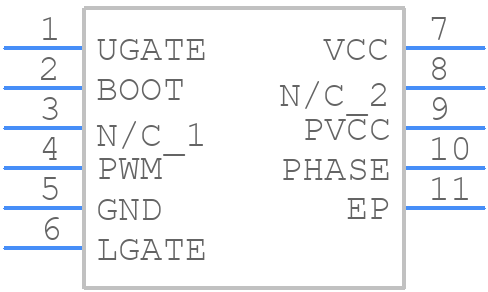

Use the download button to access the ISL6615IRZ-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL66,
or try a keyword search, such as MOSFET Drivers
