Description:The ISL6617A uses Intersil’s proprietary Phase Doubler scheme to modulate two-phase power trains with single PWM input. It doubles the number of phases that 3. 3V multiphase controllers can support. The ISL6617A is designed to minimize the number of analog signals that interface between the controller and drivers in high phase count scalable applications. The common COMP signal, which is usually seen in conventional cascaded configurations, is not required; this improves noise immunity and simplifies the la
A good PCB layout for the ISL6617AFRZ-T involves keeping the high-current paths short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a solid ground plane to minimize noise and EMI.
To ensure proper thermal management, it's recommended to attach a heat sink to the device, especially in high-power applications. The heat sink should be designed to provide good thermal conductivity and should be attached using a thermal interface material. Additionally, the PCB should be designed to provide good airflow and heat dissipation.
When selecting input and output capacitors for the ISL6617AFRZ-T, consider the voltage rating, capacitance value, and equivalent series resistance (ESR). The capacitors should be rated for the maximum input voltage and should have a low ESR to minimize energy losses. Additionally, the capacitors should be placed close to the device to minimize parasitic inductance.
To troubleshoot issues with the ISL6617AFRZ-T, start by checking the PCB layout and component placement to ensure they meet the recommended guidelines. Next, verify that the input and output capacitors are properly selected and placed. Use an oscilloscope to measure the voltage and current waveforms to identify any signs of oscillation or instability. Finally, check the device's thermal management and ensure that it is operating within the recommended temperature range.
The ISL6617AFRZ-T is a high-performance, high-power synchronous buck converter with a unique feature set, including a wide input voltage range, high efficiency, and a compact package. Compared to other similar devices, the ISL6617AFRZ-T offers higher power density, faster switching frequencies, and improved thermal performance. Additionally, it has a more comprehensive set of protection features, including overcurrent protection, undervoltage lockout, and thermal shutdown.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6617AFRZ-T Overview

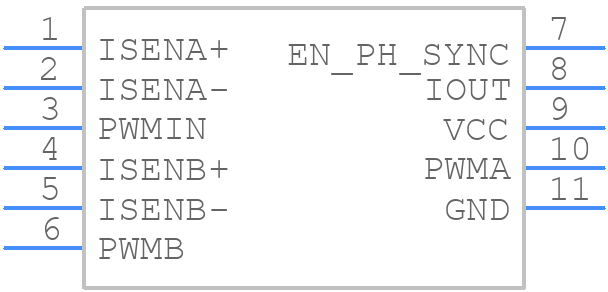

Use the download button to access the ISL6617AFRZ-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL66,
or try a keyword search, such as Other Signal Circuits
