ISL6617CRZ - Renesas Electronics

Description: The ISL6617 utilizes Intersil's proprietary Phase Doubler scheme to modulate two-phase power trains with single PWM input. It doubles the number of phases that Intersil's multi-phase controllers ISL63xx can support. When the enable pin (EN_PH_SYNC) is pulled low, the PWM input is pulled high. This simplifies the phase shedding implementation for some Intersil controllers (VR10, VR11, VR11. 1, and VR12 family) that can disable the respective and higher phase(s) by pulling the respective PWM line high. The IS

Download ISL6617CRZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

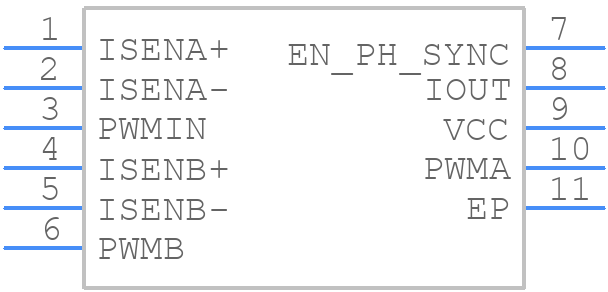

ISL6617CRZ - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ISL6617CRZ - Renesas Electronics PCB footprint - Other - Other - L10.3x3
click to zoom
3D Models
ISL6617CRZ - Renesas Electronics - 3D model - Other - L10.3x3
click to zoom

ISL6617CRZ Details

  • Manufacturer Part Number:

    ISL6617CRZ

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DFN

  • Package Description:

    DFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    L10.3X3

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

ISL6617CRZ Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout in the application note AN1995, which includes guidelines for component placement, routing, and thermal management to minimize noise and ensure reliable operation.
  • Renesas provides a component selection guide in the datasheet, which includes formulas and guidelines for selecting the inductor, output capacitors, and other external components based on the specific application requirements.
  • The ISL6617CRZ has an operating temperature range of -40°C to +125°C, but the maximum junction temperature (TJ) should not exceed 150°C to ensure reliable operation.
  • Renesas provides troubleshooting guidelines in the application note AN1995, which includes steps to identify and resolve common issues, such as oscillation, instability, or overvoltage protection.
  • Yes, the ISL6617CRZ is qualified for automotive and high-reliability applications, and meets the requirements of AEC-Q100 and other industry standards. However, additional testing and validation may be required for specific applications.
