ISL6622CBZ-T - Renesas Electronics

Description: The ISL6622 is a high frequency MOSFET driver designed to drive upper and lower power N-Channel MOSFETs in a synchronous rectified buck converter topology. The advanced PWM protocol of ISL6622 is specifically designed to work with Intersil VR11. 1 controllers and combined with N-Channel MOSFETs, form a complete core-voltage regulator solution for advanced microprocessors. When ISL6622 detects a PSI protocol sent by an Intersil VR11. 1 controller, it activates Diode Emulation (DE) and Gate Voltage Optimizati

Download ISL6622CBZ-T Model
Schematic

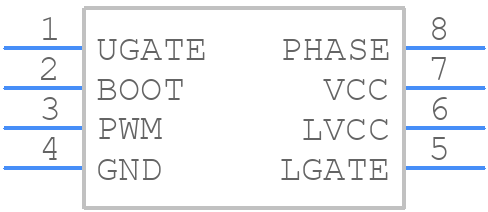

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ISL6622CBZ-T - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - M8.15-ren4
click to zoom
3D Models
ISL6622CBZ-T - Renesas Electronics  - 3D model - Small Outline Packages - M8.15-ren4
click to zoom

ISL6622CBZ-T Details

  • Manufacturer Part Number:

    ISL6622CBZ-T

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOICN

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    M8.15

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • High Side Driver:

    YES

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Output Peak Current Limit-Nom:

    3 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    13.2 V

  • Supply Voltage-Min:

    6.8 V

  • Supply Voltage-Nom:

    12 V

  • Supply Voltage1-Max:

    13.2 V

  • Supply Voltage1-Min:

    4.75 V

  • Supply Voltage1-Nom:

    12 V

  • Surface Mount:

    YES

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.01 µs

  • Turn-on Time:

    0.02 µs

  • Width:

    3.9 mm
