Description:The ISL6625A is a high frequency MOSFET driver designed to drive upper and lower power N-Channel MOSFETs in a synchronous rectified buck converter topology. In ISL6625A, the upper and lower gates are both driven to an externally applied voltage. This provides the capability to optimize applications involving trade-offs between gate charge and conduction losses. An advanced adaptive shoot-through protection is integrated to prevent both the upper and lower MOSFETs from conducting simultaneously and to minimi
A good PCB layout for the ISL6625ACRZ-T involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the high-current paths. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure the ISL6625ACRZ-T operates within its SOA, use a soft-start circuit to limit the inrush current during startup, and implement a controlled shutdown sequence to prevent voltage spikes. Additionally, ensure the input voltage and current are within the recommended specifications.
The ISL6625ACRZ-T has a thermal pad that must be connected to a thermal plane on the PCB to dissipate heat. Ensure good thermal conductivity between the IC and the thermal plane, and consider using thermal vias or a heat sink if high power dissipation is expected.
To troubleshoot issues with the ISL6625ACRZ-T, use an oscilloscope to monitor the input and output voltages, and check for signs of overheating such as excessive temperature or current draw. Verify the PCB layout and component selection meet the recommended specifications, and consult the datasheet and application notes for guidance.
The ISL6625ACRZ-T is rated for operation up to 125°C, but for high-reliability or high-temperature applications, consider using a more robust and reliable solution such as the ISL6625A or ISL6625B, which have additional features and protections for high-stress environments.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6625ACRZ-T Overview

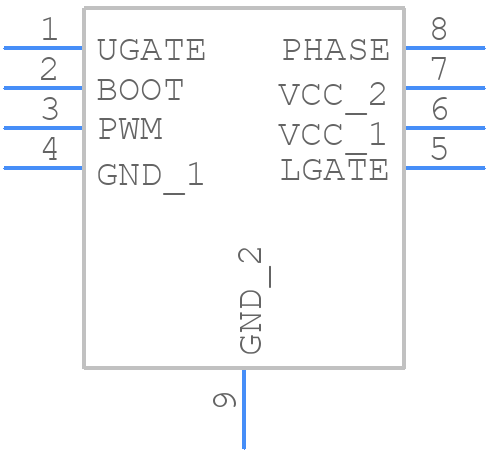

Use the download button to access the ISL6625ACRZ-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL66,
or try a keyword search, such as MOSFET Drivers
