ISL6625ACRZ-TK - Renesas Electronics

Description: The ISL6625A is a high frequency MOSFET driver designed to drive upper and lower power N-Channel MOSFETs in a synchronous rectified buck converter topology. In ISL6625A, the upper and lower gates are both driven to an externally applied voltage. This provides the capability to optimize applications involving trade-offs between gate charge and conduction losses. An advanced adaptive shoot-through protection is integrated to prevent both the upper and lower MOSFETs from conducting simultaneously and to minimi

Download ISL6625ACRZ-TK Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

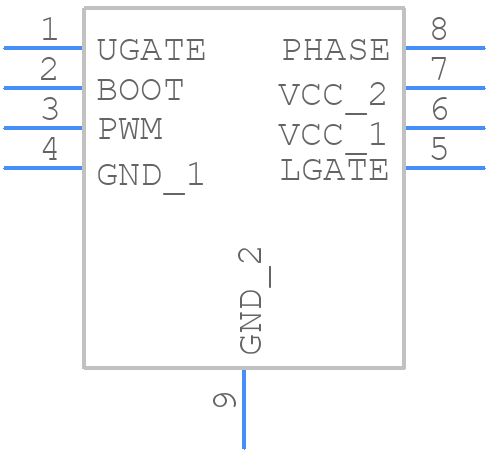

ISL6625ACRZ-TK - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ISL6625ACRZ-TK - Renesas Electronics PCB footprint - Small Outline No-lead - Small Outline No-lead - 8 Ld 2x2 DFN
click to zoom
3D Models
ISL6625ACRZ-TK - Renesas Electronics - 3D model - Small Outline No-lead - 8 Ld 2x2 DFN
click to zoom

ISL6625ACRZ-TK Details

  • Manufacturer Part Number:

    ISL6625ACRZ-TK

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DFN

  • Package Description:

    DFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    L8.2X2D

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    8

  • High Side Driver:

    YES

  • Input Characteristics:

    GATED

  • Interface IC Type:

    HALF BRIDGE BASED MOSFET DRIVER

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Output Characteristics:

    STANDARD

  • Output Peak Current Limit-Nom:

    3 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    13.2 V

  • Supply Voltage-Min:

    5.5 V

  • Supply Voltage-Nom:

    12 V

  • Supply Voltage1-Max:

    13.2 V

  • Supply Voltage1-Min:

    5.5 V

  • Supply Voltage1-Nom:

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.023 µs

  • Turn-on Time:

    0.038 µs

  • Width:

    2 mm

ISL6625ACRZ-TK Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout in the application note AN1995, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • The selection of input and output capacitors depends on the specific application requirements, such as ripple current, voltage rating, and ESR. Renesas recommends using capacitors with low ESR and high ripple current capability, and provides guidance on capacitor selection in the datasheet and application notes.
  • The ISL6625ACRZ-TK has an operating temperature range of -40°C to +125°C, but the maximum junction temperature (TJ) should not exceed 150°C. Engineers should ensure that the device is properly cooled and thermal management is implemented to prevent overheating.
  • The ISL6625ACRZ-TK has a built-in overcurrent protection feature that can be enabled by connecting the OCSET pin to a resistor and a capacitor. The datasheet provides a detailed explanation of the overcurrent protection circuit and the calculation of the OCSET resistor and capacitor values.
  • The recommended input voltage range for the ISL6625ACRZ-TK is 4.5V to 14V, but the device can operate with input voltages as low as 3.3V and as high as 15V. However, the output voltage and current ratings may be affected at these extreme input voltage ranges.
