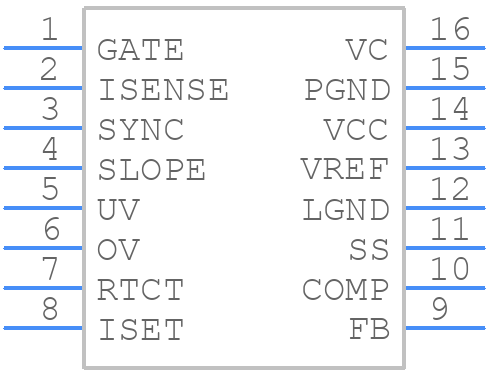

ISL6721ABZ - Renesas Electronics

ISL6721ABZ Details

• Manufacturer Part Number:

  ISL6721ABZ

• Brand Name:

  Renesas

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  SOICN

• Package Description:

  SOICN-16

• Pin Count:

  16

• Manufacturer Package Code:

  M16.15

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Factory Lead Time:

  4 Weeks

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  0

• Analog IC - Other Type:

  SWITCHING CONTROLLER

• Control Mode:

  CURRENT-MODE

• Control Technique:

  PULSE WIDTH MODULATION

• Input Voltage-Max:

  20 V

• Input Voltage-Min:

  9 V

• JESD-30 Code:

  R-PDSO-G16

• JESD-609 Code:

  e3

• Length:

  9.9 mm

• Moisture Sensitivity Level:

  2

• Number of Functions:

  1

• Number of Terminals:

  16

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  1 A

• Output Voltage-Max:

  2.59 V

• Output Voltage-Min:

  2.44 V

• Output Voltage-Nom:

  2.515 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  260

• Seated Height-Max:

  1.75 mm

• Supply Current-Max (Isup):

  12 mA

• Surface Mount:

  YES

• Switcher Configuration:

  BUCK-BOOST

• Switching Frequency-Max:

  1000 kHz

• Technology:

  BICMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  MATTE TIN

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  3.9 mm
