Description:The ISL6721 is a low power, single-ended Pulse Width Modulating (PWM) current mode controller designed for a wide range of DC/DC conversion applications including Boost, Flyback and isolated output configurations. Peak current mode control effectively handles power transients and provides inherent overcurrent protection. Other features include a low power mode where the supply current drops to less than 200μA during overvoltage and overcurrent shutdown faults. This advanced BiCMOS design features low operat
The recommended PCB layout for optimal performance involves keeping the power traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the IC. Additionally, it's recommended to use a separate analog and digital ground plane to minimize noise coupling.
To ensure the ISL6721AVZ operates within its safe operating area (SOA), monitor the input voltage, output current, and junction temperature. Make sure the input voltage is within the recommended range, the output current is within the specified maximum, and the junction temperature is below the maximum rating of 150°C.
The recommended input capacitor type is a low-ESR ceramic capacitor with a value of 10uF to 22uF. This helps to filter out high-frequency noise and ensure stable operation.
The output voltage of the ISL6721AVZ can be adjusted by using a resistive divider network between the output and the FB pin. The resistors should be chosen to provide a stable output voltage within the specified range.
The EN (enable) pin is used to turn the ISL6721AVZ on and off. When the EN pin is high, the device is enabled, and when it's low, the device is disabled. This pin can be used to implement power sequencing or to turn off the device during shutdown or low-power modes.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6721AVZ Overview

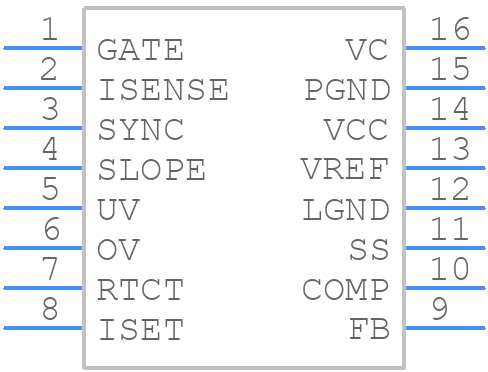

Use the download button to access the ISL6721AVZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL67,
or try a keyword search, such as Switching Regulator or Controllers
