Description:The ISL6722A and the ISL6723A are low power, single-ended pulse width modulating (PWM) current mode controllers designed for a wide range of DC/DC conversion applications including boost, flyback, and isolated output configurations. Similar to, and pin compatible with the ISL6721, the ISL6722A and ISL6723A offer a modified feature set. The ISL6722A replaces external synchronization with a low power SLEEP feature that reduces standby current to under 200µA. The ISL6723A changes the supply voltage UVLO thresh
A good PCB layout for the ISL6722AABZ-T involves keeping the power traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a separate analog and digital ground plane to minimize noise coupling.
To ensure stability, make sure to follow the recommended component values and layout guidelines in the datasheet. Additionally, check that the output capacitor has a low ESR and is properly decoupled from the output voltage. Also, ensure that the input voltage is within the recommended range and that the device is not operated in a high-temperature environment.
The maximum output current of the ISL6722AABZ-T is 2A, but this can be limited by the thermal performance of the device and the PCB. It's recommended to check the thermal derating curves in the datasheet to ensure the device can deliver the required output current in the specific application.
The ISL6722AABZ-T is rated for operation up to 125°C, but the device's performance and reliability may be affected at high temperatures. It's recommended to check the thermal derating curves and ensure that the device is properly heat-sinked and cooled in high-temperature applications.
To troubleshoot issues with the ISL6722AABZ-T, start by checking the input voltage, output voltage, and current. Verify that the device is properly configured and that the recommended component values are used. Check for any signs of overheating, such as excessive temperature or thermal shutdown. Use an oscilloscope to check for any oscillations or noise on the output voltage.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6722AABZ-T Overview

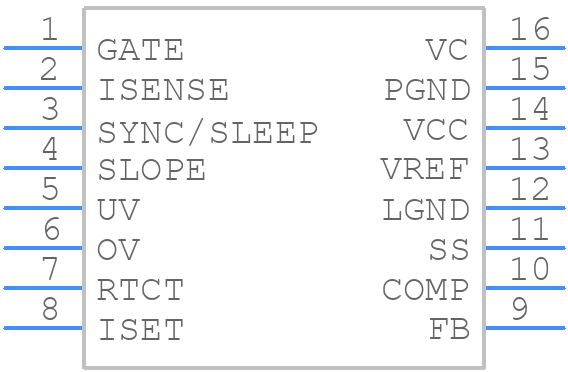

Use the download button to access the ISL6722AABZ-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL67,
or try a keyword search, such as Switching Regulator or Controllers
