Description:The ISL6722A and the ISL6723A are low power, single-ended pulse width modulating (PWM) current mode controllers designed for a wide range of DC/DC conversion applications including boost, flyback, and isolated output configurations. Similar to, and pin compatible with the ISL6721, the ISL6722A and ISL6723A offer a modified feature set. The ISL6722A replaces external synchronization with a low power SLEEP feature that reduces standby current to under 200µA. The ISL6723A changes the supply voltage UVLO thresh
A good PCB layout for the ISL6722AARZ-T involves keeping the power traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a separate analog and digital ground plane to minimize noise coupling.
To ensure stability, make sure to follow the recommended component values and layout guidelines in the datasheet. Additionally, ensure that the output capacitor has a low ESR and is properly decoupled from the output voltage. Also, check that the input voltage is within the recommended range and that the device is not operated in a region where the output voltage is close to the input voltage.
The ISL6722AARZ-T can operate up to a maximum ambient temperature of 85°C, but the junction temperature should not exceed 125°C. It's recommended to use thermal management techniques such as heat sinks or thermal pads to keep the junction temperature within the recommended range.
Yes, the ISL6722AARZ-T is qualified for automotive and high-reliability applications. It meets the requirements of AEC-Q100 and is manufactured using a robust process that ensures high reliability and low defect rates. However, it's recommended to consult with Renesas Electronics Corporation for specific requirements and qualifications.
To troubleshoot issues with the ISL6722AARZ-T, start by checking the input voltage, output voltage, and current. Verify that the component values and layout meet the recommended specifications. Use an oscilloscope to check for oscillations or noise on the output voltage. Also, check for any signs of overheating or physical damage to the device.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6722AARZ-T Overview

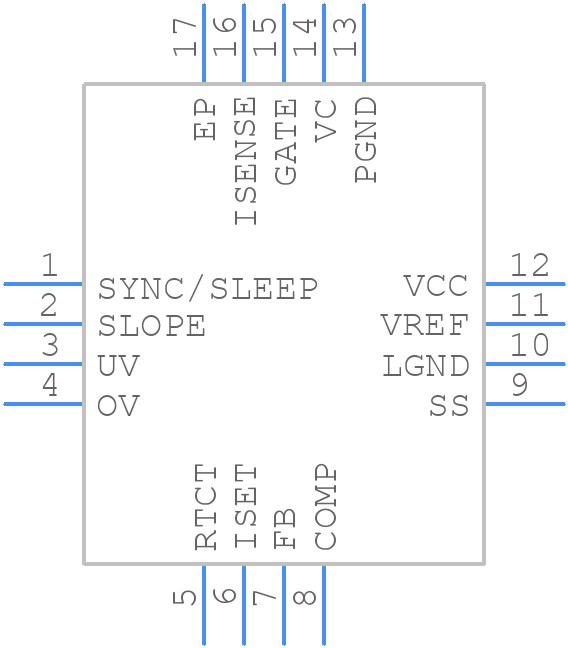

Use the download button to access the ISL6722AARZ-T schematic symbol, PCB footprint, and 3D model.
