Description:The ISL6722A and the ISL6723A are low power, single-ended pulse width modulating (PWM) current mode controllers designed for a wide range of DC/DC conversion applications including boost, flyback, and isolated output configurations. Similar to, and pin compatible with the ISL6721, the ISL6722A and ISL6723A offer a modified feature set. The ISL6722A replaces external synchronization with a low power SLEEP feature that reduces standby current to under 200µA. The ISL6723A changes the supply voltage UVLO thresh
A good PCB layout for the ISL6722AARZ should prioritize thermal management, noise reduction, and signal integrity. Place the device near the input capacitors, keep the switching node (SW) away from sensitive analog nodes, and use a solid ground plane to reduce EMI. Refer to the application note 'PCB Layout Guidelines for ISL6722AARZ' for more details.
Choose input capacitors with low ESR and high ripple current rating to minimize voltage drops and ensure stable operation. Output capacitors should have low ESR and high capacitance to filter the output voltage. Refer to the datasheet's 'Input Capacitor Selection' and 'Output Capacitor Selection' sections for specific guidelines.
The ISL6722AARZ is rated for operation from -40°C to +125°C ambient temperature. However, the device's performance and reliability may degrade at extreme temperatures. Ensure proper thermal management and derating to maintain optimal performance.
Yes, the ISL6722AARZ can be used in a synchronous rectification configuration to improve efficiency. However, this requires additional external components and careful design consideration to ensure proper operation. Refer to the application note 'Synchronous Rectification with ISL6722AARZ' for more information.
Common issues with the ISL6722AARZ can be caused by poor PCB layout, incorrect component selection, or inadequate thermal management. Use an oscilloscope to monitor the device's switching node and output voltage, and check for signs of oscillation or instability. Refer to the datasheet's 'Troubleshooting' section and application notes for guidance on resolving common issues.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6722AARZ Overview

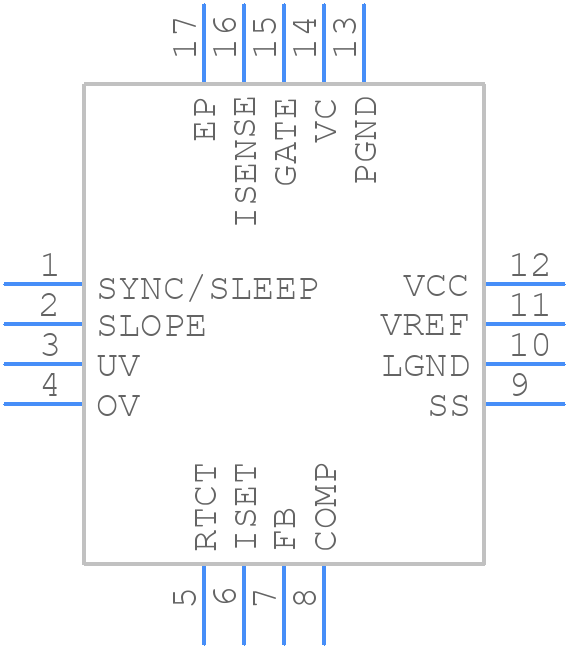

Use the download button to access the ISL6722AARZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL67,
or try a keyword search, such as Switching Regulator or Controllers
