A good PCB layout for the ISL6723AABZ-T involves keeping the power traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a separate analog and digital ground plane to minimize noise coupling.
To ensure stability, make sure to follow the recommended component values and layout guidelines in the datasheet. Additionally, ensure that the output capacitor has a low ESR and is properly decoupled from the output voltage. It's also recommended to add a small ceramic capacitor (e.g. 10nF) in parallel with the output capacitor to improve stability.
The ISL6723AABZ-T has an operating ambient temperature range of -40°C to +85°C. However, the device's performance and reliability may be affected at extreme temperatures, so it's recommended to operate within a narrower range (e.g. 0°C to +70°C) for optimal performance.
Yes, the ISL6723AABZ-T is suitable for high-reliability and automotive applications. It's built with high-quality materials and has undergone rigorous testing to ensure its reliability and performance. However, it's recommended to consult with Renesas' application engineers to ensure the device meets the specific requirements of your application.
To troubleshoot issues with the ISL6723AABZ-T, start by checking the input voltage, output voltage, and current draw. Verify that the device is properly soldered and that the PCB layout is correct. Use an oscilloscope to check for voltage ripple, noise, or oscillations. If the issue persists, consult the datasheet and application notes, or contact Renesas' technical support for further assistance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6723AABZ-T Overview

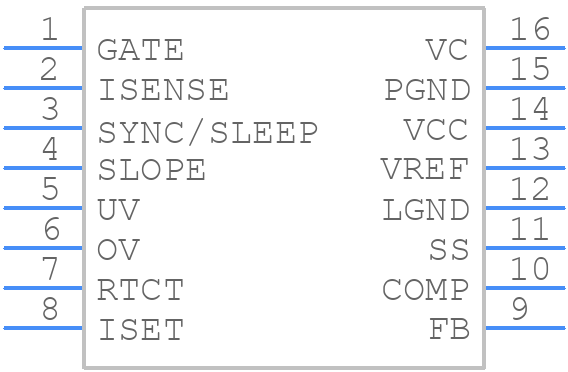

Use the download button to access the ISL6723AABZ-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL67,
or try a keyword search, such as Switching Regulator or Controllers
