A good PCB layout for the ISL6723AABZ involves keeping the high-current paths short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a separate analog and power ground plane to minimize noise coupling.
The selection of input and output capacitors for the ISL6723AABZ depends on the specific application requirements. Generally, low-ESR capacitors with a high ripple current rating are recommended. The input capacitor should be at least 10uF, and the output capacitor should be at least 22uF. The capacitor values can be adjusted based on the output voltage and current requirements.
The maximum ambient temperature range for the ISL6723AABZ is -40°C to +85°C. However, the device can operate up to +125°C with derating. It's essential to ensure proper thermal management to prevent overheating and ensure reliable operation.
The ISL6723AABZ has a built-in overcurrent protection feature that can be enabled by connecting the OCP pin to a resistor and capacitor network. The OCP threshold can be set by selecting the appropriate resistor value. Additionally, an external overcurrent protection circuit can be implemented using a sense resistor and a comparator.
The recommended startup sequence for the ISL6723AABZ involves applying the input voltage, followed by the enable signal. The device will then soft-start and regulate the output voltage. It's essential to ensure that the input voltage is stable and within the recommended range before applying the enable signal.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6723AABZ Overview

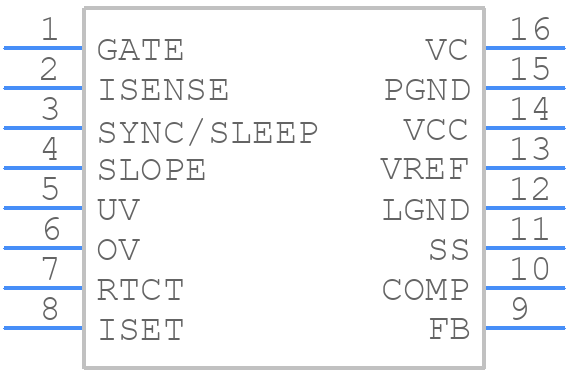

Use the download button to access the ISL6723AABZ schematic symbol, PCB footprint, and 3D model.
