Description:The ISL6729 pulse width modulating (PWM) current mode controller is designed for power conversion applications that are based on a microcontroller, or other device, which can generate a digital clock signal at the desired switching frequency. Similar to the ISL684x family of products, the ISL6729 provides the basic current mode PWM control features, but eliminates the error amplifier, the oscillator, and the reference. An external clock signal applied to the oscillator input provides the time base and sets
A good PCB layout for the ISL6729IBZ-T involves keeping the power traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a separate analog and digital ground plane to minimize noise coupling.
To ensure stability, make sure to follow the recommended component values and layout guidelines in the datasheet. Additionally, check that the output capacitor has a low ESR and is properly decoupled from the output voltage. Also, ensure that the input voltage is within the recommended range and that the device is not operated in a region where the output voltage is close to the input voltage.
The ISL6729IBZ-T can operate in an ambient temperature range of -40°C to +85°C. However, the device's performance and reliability may degrade at higher temperatures, so it's recommended to keep the ambient temperature below 70°C for optimal performance.
Yes, the ISL6729IBZ-T is qualified for automotive and high-reliability applications. It meets the AEC-Q100 qualification standard for automotive applications and is also suitable for use in industrial and medical applications that require high reliability.
To troubleshoot issues with the ISL6729IBZ-T, start by checking the input voltage and current, output voltage and current, and the device's operating frequency. Use an oscilloscope to check for any signs of oscillation or instability. Also, check the PCB layout and component values to ensure they match the recommended values in the datasheet. If the issue persists, consult the datasheet and application notes for further guidance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6729IBZ-T Overview

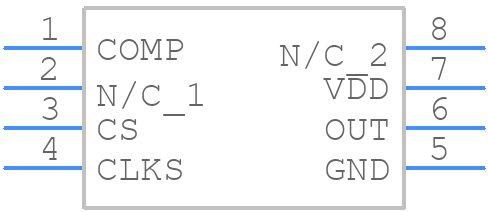

Use the download button to access the ISL6729IBZ-T schematic symbol, PCB footprint, and 3D model.
