Description:The ISL6730A, ISL6730B, ISL6730C, ISL6730D are active Power Factor Correction (PFC) controller ICs that use a boost topology. The controllers are suitable for AC/DC power systems, up to 2kW and over the universal line input. The ISL6730A, ISL6730B, ISL6730C, ISL6730D operate in Continuous Conduction Mode (CCM). Accurate input current shaping is achieved with a current error amplifier. A patent pending breakthrough negative capacitance technology minimizes zero crossing distortion and reduces the magnetic co
The recommended PCB layout for the ISL6730AFUZ involves keeping the power stage components (e.g., FETs, inductors, and capacitors) close together to minimize parasitic inductance and resistance. Additionally, it's essential to use a solid ground plane and to separate the high-current paths from the low-current signal paths. Renesas provides a reference design and layout guidelines in the application notes and evaluation board documentation.
When selecting an inductor for the ISL6730AFUZ, consider the following factors: inductance value, DC resistance, core material, and saturation current. The inductor should be able to handle the peak current and have a low DC resistance to minimize losses. Renesas recommends using a shielded inductor with a ferrite or iron powder core, and provides a list of recommended inductors in the datasheet and application notes.
The maximum junction temperature of the ISL6730AFUZ is 150°C. To ensure the device stays within the safe operating range, it's essential to provide adequate heat sinking, such as a thermal pad or heat sink, and to keep the ambient temperature below 85°C. Additionally, the device should be operated within the recommended input voltage and current ranges, and the thermal design should be validated through thermal simulations and testing.
To troubleshoot issues with the ISL6730AFUZ, start by verifying the PCB layout and component selection against the recommended design guidelines. Check for proper decoupling, filtering, and signal routing. Use an oscilloscope to monitor the output voltage, input voltage, and current waveforms. Look for signs of oscillation, such as ringing or high-frequency noise, and check the device's operating frequency. Consult the datasheet, application notes, and Renesas' technical support resources for guidance on troubleshooting and debugging.
Yes, the ISL6730AFUZ is suitable for high-reliability and automotive applications. It meets the requirements of AEC-Q100, a standard for automotive-grade ICs, and is qualified for use in harsh environments. Renesas provides detailed information on the device's qualifications, certifications, and reliability data in the datasheet and quality documentation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6730AFUZ Overview

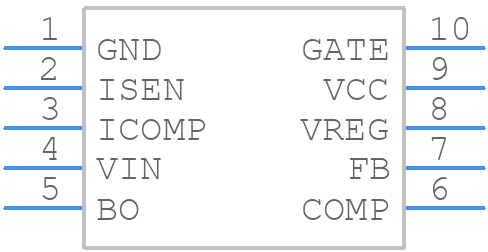

Use the download button to access the ISL6730AFUZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL67,
or try a keyword search, such as Switching Regulator or Controllers
