Description:The ISL6730A, ISL6730B, ISL6730C, ISL6730D are active Power Factor Correction (PFC) controller ICs that use a boost topology. The controllers are suitable for AC/DC power systems, up to 2kW and over the universal line input. The ISL6730A, ISL6730B, ISL6730C, ISL6730D operate in Continuous Conduction Mode (CCM). Accurate input current shaping is achieved with a current error amplifier. A patent pending breakthrough negative capacitance technology minimizes zero crossing distortion and reduces the magnetic co
The recommended PCB layout for the ISL6730CFUZ involves placing the input capacitors close to the VIN pin, using a solid ground plane, and keeping the high-frequency switching nodes (e.g., LX pin) away from sensitive analog nodes. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To select the right inductor for the ISL6730CFUZ, consider the maximum current rating, inductance value, and DC resistance. A good starting point is to choose an inductor with a saturation current rating above the maximum output current, an inductance value between 1-10μH, and a DC resistance below 100mΩ. The inductor should also be rated for the operating frequency of the converter.
The maximum junction temperature of the ISL6730CFUZ is 150°C. However, it's recommended to keep the junction temperature below 125°C for optimal reliability and performance.
The ISL6730CFUZ has a built-in overcurrent protection feature that can be enabled by connecting the OC pin to a resistor divider network. The resistor values should be chosen to set the overcurrent threshold to the desired value. Additionally, the OC pin can be connected to a comparator or a microcontroller to implement more sophisticated overcurrent protection schemes.
The recommended input capacitor type for the ISL6730CFUZ is a low-ESR ceramic capacitor or a film capacitor with a voltage rating above the maximum input voltage. The capacitor should have a capacitance value between 10-100μF and be placed close to the VIN pin to minimize input voltage ripple.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6730CFUZ Overview

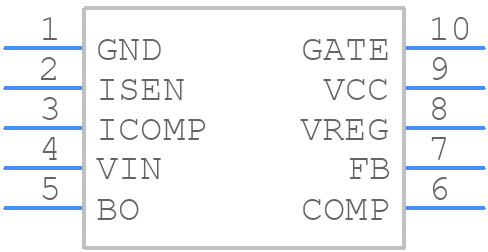

Use the download button to access the ISL6730CFUZ schematic symbol, PCB footprint, and 3D model.
