Description:The ISL6744A is a low cost, primary side, double-ended controller intended for applications using full and half-bridge topologies for unregulated DC/DC converters. It is a voltage-mode PWM controller designed for half-bridge and full-bridge power supplies. It provides precise switching frequency control, adjustable soft-start, precise dead time control with dead times as low as 35ns, and overcurrent shutdown. The ISL6744A is identical to the ISL6744, but is optimized for higher noise environments. Low start
A good PCB layout for the ISL6744AABZ involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a separate analog and digital ground plane to reduce noise coupling.
To ensure stability, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, the output capacitor should be selected based on the specific application requirements, and the input capacitor should be chosen to ensure a stable input voltage. It's also crucial to minimize the parasitic inductance and capacitance in the circuit.
The ISL6744AABZ has a thermal shutdown feature that activates when the junction temperature exceeds 150°C. To prevent overheating, ensure good airflow around the device, use a heat sink if necessary, and avoid blocking the airflow around the device. It's also essential to follow the recommended PCB layout guidelines to minimize thermal resistance.
To troubleshoot issues with the ISL6744AABZ, start by verifying the input voltage and current, and ensuring that the output voltage is within the specified range. Check the PCB layout for any errors or omissions, and verify that the component values match the recommended values. Use an oscilloscope to check for any oscillations or noise on the output, and consult the datasheet for specific troubleshooting guidelines.
To minimize EMI, use a shielded enclosure, and ensure that the PCB layout is designed to minimize radiation. Use a common-mode choke or ferrite bead to filter the input and output lines, and consider using a shielding material around the device. Additionally, follow the recommended PCB layout guidelines to minimize the loop area and reduce radiation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6744AABZ Overview

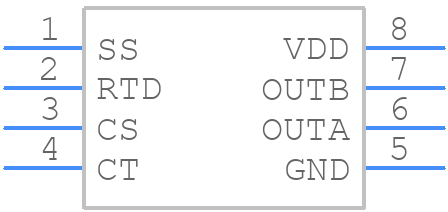

Use the download button to access the ISL6744AABZ schematic symbol, PCB footprint, and 3D model.
