ISL6744AAUZ - Renesas Electronics

Description: The ISL6744A is a low cost, primary side, double-ended controller intended for applications using full and half-bridge topologies for unregulated DC/DC converters. It is a voltage-mode PWM controller designed for half-bridge and full-bridge power supplies. It provides precise switching frequency control, adjustable soft-start, precise dead time control with dead times as low as 35ns, and overcurrent shutdown. The ISL6744A is identical to the ISL6744, but is optimized for higher noise environments. Low start

Download ISL6744AAUZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

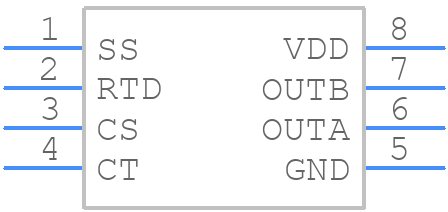

Symbol
ISL6744AAUZ - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ISL6744AAUZ - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - M8.118
click to zoom
3D Models
ISL6744AAUZ - Renesas Electronics - 3D model - Small Outline Packages - M8.118
click to zoom

ISL6744AAUZ Details

  • Manufacturer Part Number:

    ISL6744AAUZ

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    MSOP

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    M8.118

  • Country Of Origin:

    Mainland China, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    16 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    8.5 mA

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    SINGLE

  • Switching Frequency-Max:

    2000 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

ISL6744AAUZ Frequently Asked Questions (FAQs)

  • A good PCB layout is crucial for the ISL6744AAUZ. Ensure that the input and output capacitors are placed close to the IC, and the power traces are wide and short. Use a solid ground plane and avoid routing high-frequency signals under the IC. Refer to the application note 'PCB Layout Guidelines for Switching Regulators' for more details.
  • Choose an inductor with a high saturation current rating, low DC resistance, and a suitable inductance value. The datasheet recommends an inductor with an inductance value between 1.5 μH and 3.3 μH. Consider using a shielded inductor to reduce EMI. You can use online inductor selection tools or consult with an inductor manufacturer for guidance.
  • The ISL6744AAUZ has an absolute maximum input voltage rating of 18 V. However, the recommended operating input voltage range is 6.5 V to 14 V. Exceeding the absolute maximum rating can damage the IC.
  • To ensure stability, follow the datasheet's guidelines for component selection, PCB layout, and compensation. Use a compensation network with a suitable resistor and capacitor values. You can also use the Renesas Electronics Corporation's online stability analysis tool to help with compensation design.
  • The ISL6744AAUZ has a thermal derating of 30% per °C above 85°C. This means that the maximum output current rating decreases as the ambient temperature increases. Ensure proper thermal design and heat sinking to maintain a safe operating temperature.
