Description:The ISL6745A is a low-cost, double-ended, voltage-mode PWM controller designed for half-bridge and full-bridge power supplies and line-regulated bus converters. It provides precise control of switching frequency, adjustable soft-start, and overcurrent shutdown. In addition, the ISL6745A allows for accurate adjustment of MOSFET non-overlap time (dead time) with dead times as low as 35ns, allowing power engineers to optimize the efficiency of open-loop bus converters. The ISL6745A also includes a control volt
A good PCB layout is crucial for the ISL6745AAUZ. Renesas recommends a 4-layer board with a solid ground plane, and to keep the input and output traces as short as possible. Additionally, it's recommended to use a common mode choke and a shielded inductor to reduce EMI.
The ISL6745AAUZ is rated for operation from -40°C to 125°C. To ensure operation within this range, make sure to provide adequate heat sinking, avoid overheating, and use a thermal interface material (TIM) if necessary. Also, consider the thermal resistance of the package and the PCB.
Renesas recommends using X5R or X7R ceramic capacitors with a voltage rating of at least 2x the input voltage. For the input capacitor, a value of 10uF to 22uF is recommended, while for the output capacitor, a value of 10uF to 47uF is recommended.
The ISL6745AAUZ has an adjustable output voltage. To configure the device for different output voltages, use the VFB pin and an external resistor divider network. The VFB pin is connected to the output voltage through a resistor divider, and the output voltage is set by the ratio of the resistors.
The ISL6745AAUZ has a recommended input voltage range of 2.7V to 5.5V. Operating the device outside of this range may affect its performance and reliability.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL6745AAUZ Overview

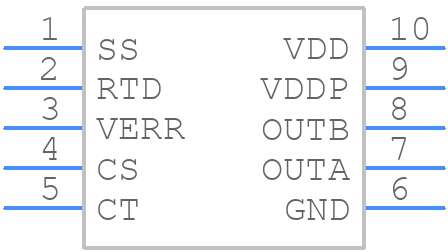

Use the download button to access the ISL6745AAUZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL67,
or try a keyword search, such as Switching Regulator or Controllers
