Description:The ISL68124 is a digital dual output, flexible multiphase (X+Y ≤ 4) PWM controller supporting the latest PMBus 1. 3 specifications. Either output can be configured to support any desired phase assignments up to a maximum of four phases across the two outputs (X+Y). For example, 3+1, 2+2, 2+1, or even a single output operation as a 4+0 configuration are supported. The ISL68124 uses Intersil’s proprietary linear synthetic digital current modulation scheme to achieve the industry’s best combination of transie
A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or heat sink, using thermal vias to dissipate heat, and keeping the surrounding area clear of other components to allow for airflow.
To ensure reliable operation across the entire operating temperature range, it's essential to follow the recommended operating conditions, use a suitable thermal design, and consider the device's thermal derating characteristics.
When selecting input and output capacitors, consider the capacitor's equivalent series resistance (ESR), voltage rating, and capacitance value. The capacitor's ESR should be low enough to minimize voltage ripple, and the voltage rating should be higher than the maximum input voltage.
To troubleshoot issues with the power-good signal, check the output voltage, input voltage, and enable pin. Ensure that the output voltage is within the specified range, the input voltage is above the undervoltage lockout threshold, and the enable pin is properly configured.
Not using the recommended external components, such as the input and output capacitors, can lead to reduced performance, increased noise, and potential instability or failure of the device.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL68124IRAZ-T7A Overview

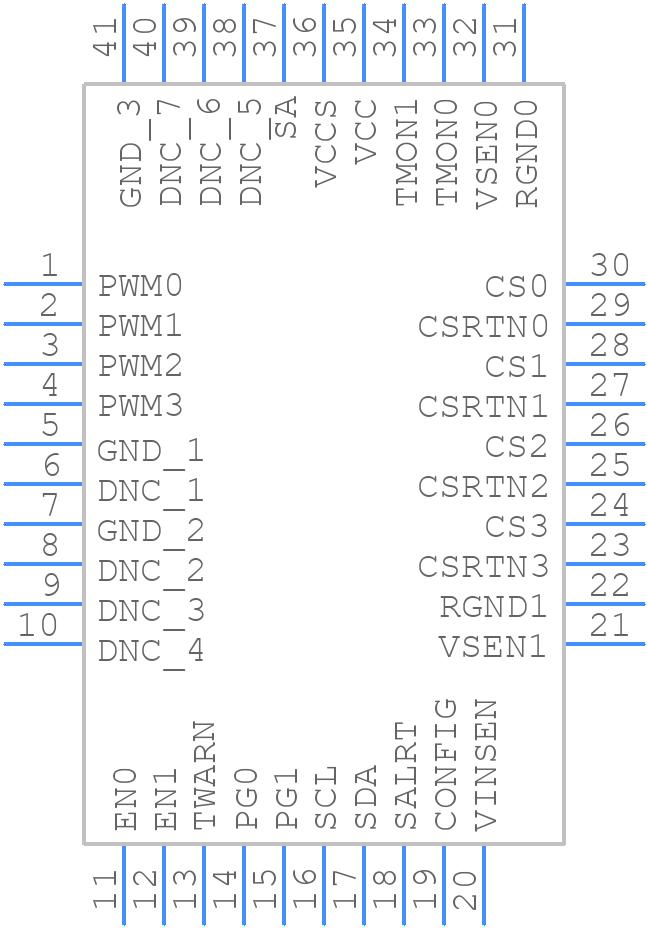

Use the download button to access the ISL68124IRAZ-T7A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL68,
or try a keyword search, such as Switching Regulator or Controllers
