Description:The ISL68137 is a digital dual output, flexible multiphase (X+Y ≤ 7) PWM controller with Adaptive Voltage Scaling Bus (AVSBus) interface. The ISL68137 can be configured to support any desired phase assignments up to a maximum of seven phases across the two outputs (X+Y). For example, 6+1, 5+2, 4+2, 3+3, 3+2, or even a single output as a 7+0 configuration are supported. The flexible phase arrangement, combined with PMBus and AVSBus interfaces, allows the device to support any demanding power supply requireme
A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or heat sink, using thermal vias to dissipate heat, and keeping the surrounding area clear of other components.
To ensure reliable operation across the entire operating temperature range, it's essential to follow the recommended operating conditions, use a suitable thermal design, and consider the device's thermal derating.
When selecting input and output capacitors, consider the capacitor's voltage rating, capacitance value, equivalent series resistance (ESR), and temperature rating to ensure they can handle the device's operating conditions.
To troubleshoot common issues, check the PCB layout, component selection, and soldering quality. Verify that the input and output capacitors meet the recommended specifications, and ensure the device is operated within its recommended operating conditions.
Not using the recommended external components, such as the bootstrap capacitor, can lead to reduced performance, instability, or even device failure. Always follow the recommended component values and configurations to ensure reliable operation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL68137IRAZ-T7A Overview

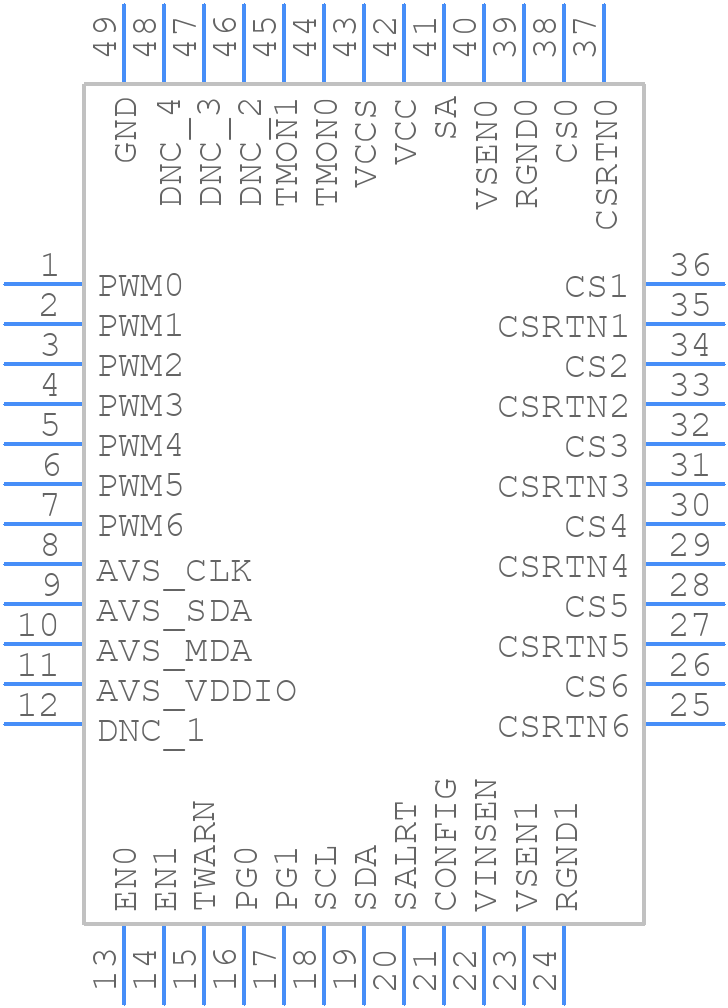

Use the download button to access the ISL68137IRAZ-T7A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL68,
or try a keyword search, such as Switching Regulator or Controllers
