Description:The ISL68221 is a digital triple output multiphase (X+Y+Z ≤ 3) PWM controller with PMBus V 1.3 compatibility. The controller can be configured to support any desired phase assignments up to a maximum of three phases across the three outputs (X, Y, and Z). For example, 1+1+1, 1+1+0, or even single output operation as a 3+0 configuration is supported. When combined with the Renesas family of Smart Power Stages and DrMOS devices, designs of exceptional density and performance can be created.The ISL68221 uses t
The recommended PCB layout for optimal performance involves keeping the high-current paths short and wide, using multiple vias to connect the thermal pad to the ground plane, and placing the input and output capacitors close to the IC. A 4-layer PCB with a dedicated ground plane is also recommended.
To optimize the compensation network, you need to consider the output capacitor's ESR, the inductor's DCR, and the desired closed-loop bandwidth. You can use the datasheet's compensation design guidelines and simulation tools like Intersil's PowerNavigator or a third-party tool like LTpowerCAD to find the optimal compensation values.
The maximum allowed voltage on the EN pin is 6V. To protect it from overvoltage, you can use a voltage divider or a zener diode clamp circuit to limit the voltage to 6V or less. You can also use a dedicated overvoltage protection IC if needed.
To ensure the ISL68221IRAZ meets your specific thermal requirements, you need to consider the maximum ambient temperature, the maximum power dissipation, and the thermal resistance of the package. You can use the datasheet's thermal calculations and simulation tools like FloTHERM or ANSYS Icepak to estimate the junction temperature and ensure it stays within the recommended limits.
The recommended input and output capacitors for the ISL68221IRAZ are low-ESR ceramic capacitors with a voltage rating of 10V or higher. The input capacitor should be at least 10uF, and the output capacitor should be at least 22uF. You can use capacitors from reputable manufacturers like Murata, TDK, or Vishay.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL68221IRAZ Overview

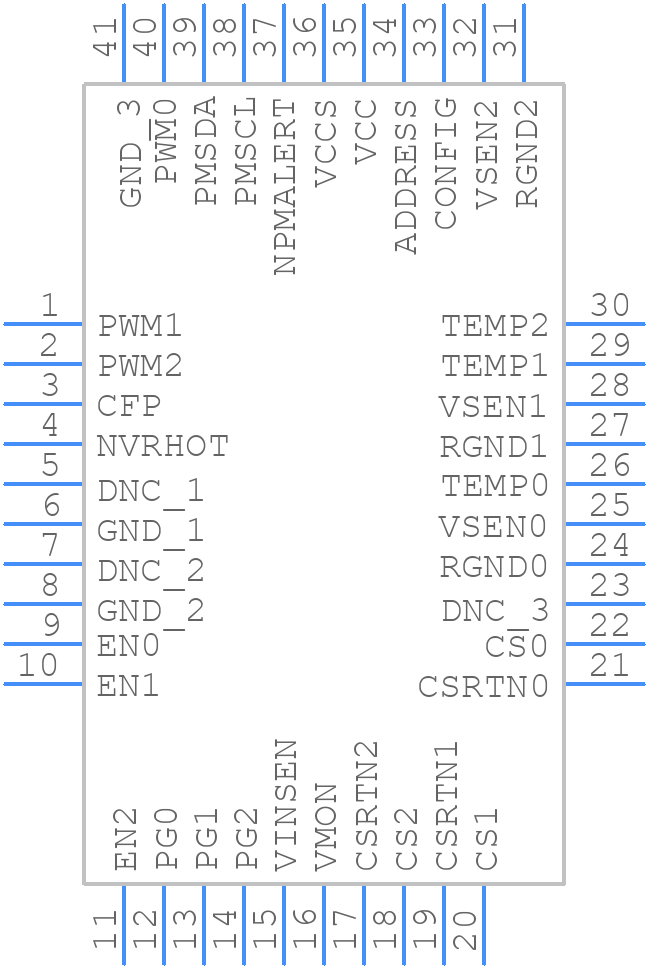

Use the download button to access the ISL68221IRAZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL68,
or try a keyword search, such as Switching Regulator or Controllers
