Description:The ISL68222 is a digital dual output multiphase (X+Y ≤ 5) PWM controller supporting PMBus V1.3/AVSBus interfaces. The controller can be configured to support any phase assignments up to a maximum of five phases across the two outputs (X and Y). For example, 4+1, 3+2, 3+1, 1+1, or a single output operation as a 5+0 configuration is supported. Increased power density and PMBus V1.3 interface support allow the ISL68222 to support any demanding power supply requirement.The ISL68222 uses the proprietary Renesas
The recommended PCB layout for optimal performance can be found in the ISL68222IRAZ evaluation board user manual or by contacting Renesas' technical support. A good layout should ensure proper thermal management, minimize noise coupling, and optimize signal integrity.
Optimizing the compensation network requires understanding the system's transfer function and the desired closed-loop response. Renesas provides a compensation tool and application notes to help with this process. Additionally, consulting with a power management expert or Renesas' technical support can be beneficial.
While the datasheet specifies the maximum input voltage, the allowed input voltage ripple is not explicitly stated. As a general guideline, it's recommended to keep the input voltage ripple below 10% of the nominal input voltage to ensure reliable operation. However, this may vary depending on the specific application and system requirements.
To ensure the device meets the required EMC standards, follow the recommended PCB layout and design guidelines, use proper shielding and filtering, and consult with Renesas' technical support or an EMC expert. Additionally, perform EMC testing and validation to ensure compliance with the relevant standards.
For high-power applications, a robust thermal management strategy is crucial. This includes using a heat sink with a low thermal resistance, ensuring good airflow, and optimizing the PCB layout for thermal dissipation. Consult with Renesas' technical support or a thermal management expert for specific guidance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL68222IRAZ Overview

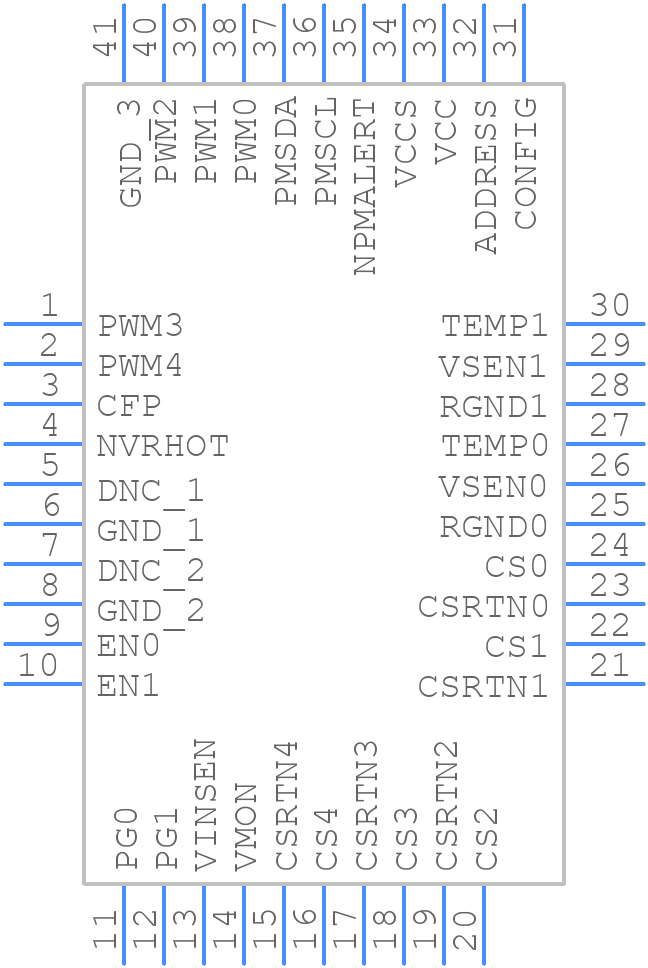

Use the download button to access the ISL68222IRAZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL68,
or try a keyword search, such as Switching Regulator or Controllers
