ISL68300IRAZ-T7A - Renesas Electronics

Description: This device is no longer supported and is not recommended for new designs.The ISL68300 with integrated MOSFET drivers and ISL68301 with PWM output simplify designing power supplies for data center, wired and wireless communications, and factory automation equipment. The ISL68300 can drive discrete external MOSFETs directly, while the ISL68301 pairs with Renesas’ smart power stages or DrMOS power stages to create a complete voltage regulator solution.

Download ISL68300IRAZ-T7A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

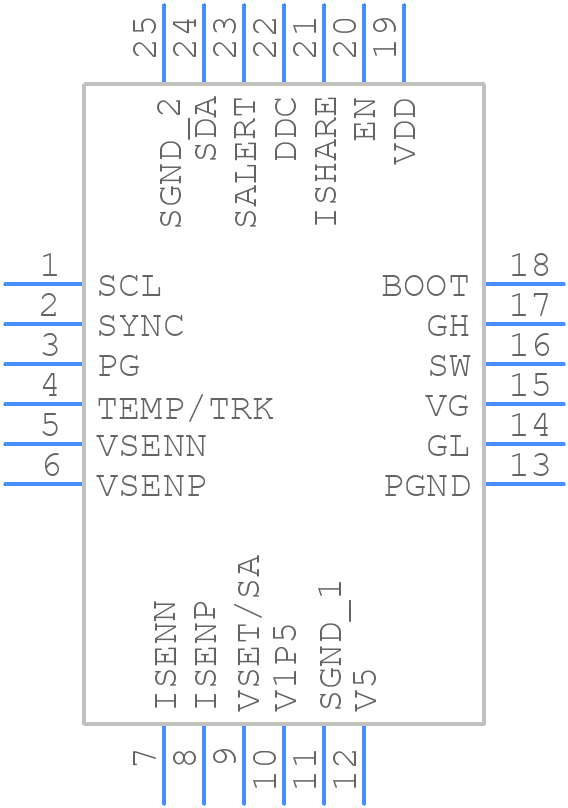

ISL68300IRAZ-T7A - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ISL68300IRAZ-T7A - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - L24.4x4H 24 LEAD QUAD FLAT NO-LEAD PLASTIC PACKAGE
click to zoom
3D Models
ISL68300IRAZ-T7A - Renesas Electronics - 3D model - Quad Flat No-Lead - L24.4x4H 24 LEAD QUAD FLAT NO-LEAD PLASTIC PACKAGE
click to zoom

ISL68300IRAZ-T7A Details

  • Manufacturer Part Number:

    ISL68300IRAZ-T7A

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN

  • Package Description:

    QFN-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    L24.4X4H

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2018-06-07

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Additional Feature:

    OUTPUT VOLTAGE RANGE: 0.45V TO 5.5V

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    16 V

  • Input Voltage-Min:

    4.75 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    5.5 V

  • Output Voltage-Min:

    0.45 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    30 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1000 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

ISL68300IRAZ-T7A Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note AN1965, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure optimal performance.
  • The ISL68300 has a built-in overcurrent protection feature that can be enabled by setting the OCP threshold through the I2C interface. The device will automatically shut down if the current exceeds the set threshold. Additionally, an external overcurrent protection circuit can be implemented using a sense resistor and a comparator.
  • Although the datasheet specifies a maximum input voltage of 5.5V, it's recommended to limit the voltage on the VIN pin to 5V to ensure reliable operation and prevent damage to the device.
  • The output voltage can be configured by programming the VID codes through the I2C interface. The VID codes correspond to specific output voltage levels, and the device can be programmed to output a specific voltage based on the VID code.
  • The ISL68300 requires a specific power sequencing to ensure proper operation. The VIN pin should be powered up before the VCC pin, and the VCC pin should be powered up before the EN pin. This ensures that the device is properly initialized and configured before enabling the output.
