ISL71001SEHMNZ footprint, schematic symbol and 3D model by Renesas Electronics

ISL71001SEHMNZ - Renesas Electronics

Description: The ISL71001SLHM is a radiation hardened and high efficiency monolithic synchronous buck regulator with integrated MOSFETs. This single-chip power solution operates across an input voltage range of 3V to 5.5V and provides a tightly regulated output voltage that is externally adjustable from 0.8V to ~85% of the input voltage with an output load current capacity of 6A. The ISL71001SLHM is available in a plastic 64 Ld Thin Quad Flatpack (EP-TQFP) package. The ISL71001SLHM uses peak current-mode control for exc

Download ISL71001SEHMNZ Model

Schematic
symbols

PCB
footprints

3D
models

Symbol

click to zoom

PCB Footprints

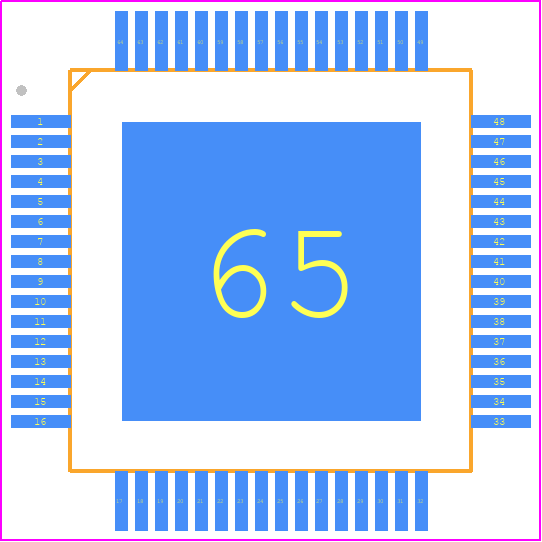

ISL71001SEHMNZ - Renesas Electronics PCB footprint - Quad Flat Packages - Quad Flat Packages - Q64.10x10J

click to zoom

3D Models

ISL71001SEHMNZ - Renesas Electronics - 3D model - Quad Flat Packages - Q64.10x10J

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for ISL71001SEHMNZ
Part Number ISL71001SEHMNZ
Manufacturer Renesas Electronics
Pin Count 65
Part Category Integrated Circuit
Package Category Quad Flat Packages
Footprint Name Quad Flat Packages - Q64.10x10J
Released Date Mar 22, 2024
Last Modified Date Mar 22, 2024 4:14 AM UTC
Pinout / Pin List Click Here (Member Only)

ISL71001SEHMNZ Details

Manufacturer Part Number:
ISL71001SEHMNZ
Manufacturer:
Renesas Electronics Corporation

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

ISL71001SEHMNZ Overview

Use the download button to access the ISL71001SEHMNZ schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like ISL71, or try a keyword search, such as Switching Regulator or Controllers
