Description:The ISL71010B50 is an ultra low noise, high DC accuracy precision voltage reference, with a wide input voltage range from 7. 0V to 30V. The ISL71010B50 uses the dielectrically isolated PR40 process to achieve 4. 2μVP-P noise at 0. 1Hz to 10Hz with an initial voltage accuracy of ±0. 05%. The ISL71010B50 offers a 5. 0V output voltage with 10ppm/°C temperature coefficient and also provides excellent line and load regulation. The device is offered in an 8 Ld SOIC package. The ISL71010B50 is ideal for high-end i
Renesas provides a recommended PCB layout guide in their application note AN1995, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure optimal performance.
The ISL71010BMB50Z is designed to be radiation-hardened, but it's still important to follow proper design and layout guidelines to ensure reliable operation. Renesas provides guidelines for radiation-hardened design in their application note AN1965, which includes recommendations for component selection, PCB layout, and shielding.
While the datasheet specifies the maximum operating voltage, it's essential to ensure that the device can withstand voltage transients. According to Renesas, the ISL71010BMB50Z can withstand voltage transients up to 20% above the maximum operating voltage for a duration of 100ms, but it's recommended to consult with Renesas support for specific application requirements.
The ISL71010BMB50Z has built-in fault detection and protection features, such as overcurrent protection and thermal shutdown. To implement these features, refer to the datasheet and application notes AN1995 and AN1965, which provide guidelines for configuring the device's fault detection and protection features.
Renesas recommends using a combination of series resistors, capacitors, and ferrite beads to filter out electromagnetic interference (EMI). A detailed EMI filtering scheme is provided in the application note AN1995, which includes recommendations for component selection and PCB layout.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL71010BMB50Z Overview

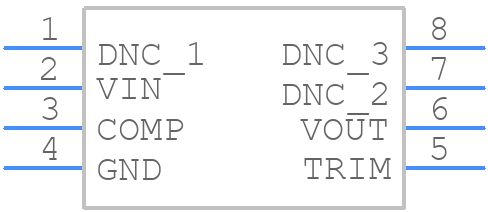

Use the download button to access the ISL71010BMB50Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL71,
or try a keyword search, such as Voltage References
