Description:The ISL71026M is a radiation tolerant 3. 3V CAN transceiver that is compatible with the ISO11898-2 standard for applications calling for Controller Area Network (CAN) serial communication in satellites and aerospace communications and telemetry data processing in harsh industrial environments. The transceiver can transmit and receive at bus speeds of up to 1Mbps. The device is designed to operate across a common-mode range of -7V to +12V with a maximum of 120 nodes. The device has three discrete selectable
Renesas provides a recommended PCB layout guide in the ISL71026MVZ-T evaluation board user manual, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
To ensure reliable operation in high-temperature environments, it is recommended to follow the thermal management guidelines in the datasheet, including using a heat sink, thermal interface material, and ensuring good airflow. Additionally, consider using a thermistor or temperature sensor to monitor the device temperature and implement thermal shutdown or throttling if necessary.
The recommended input and output capacitors for the ISL71026MVZ-T are ceramic capacitors with a voltage rating of at least 10V and a capacitance value of 10uF to 22uF. The datasheet provides more detailed guidance on capacitor selection and placement.
To troubleshoot issues with the ISL71026MVZ-T, start by reviewing the datasheet and application notes for guidance on proper design and layout. Use oscilloscopes and other measurement tools to identify the source of the issue, and consider consulting with Renesas technical support or a qualified engineer for further assistance.
Using a different input voltage or frequency than specified in the datasheet may affect the performance, efficiency, and reliability of the ISL71026MVZ-T. It is recommended to consult with Renesas technical support or a qualified engineer to determine the feasibility and potential implications of deviating from the specified input voltage or frequency.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL71026MVZ-T Overview

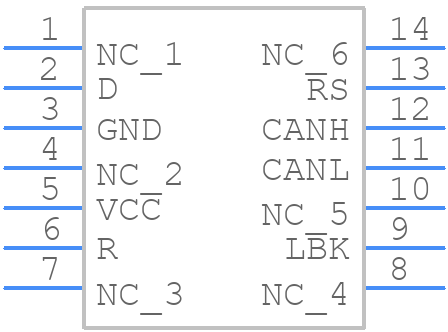

Use the download button to access the ISL71026MVZ-T schematic symbol, PCB footprint, and 3D model.
