Description:The ISL71610SLHM is a passive-input digital signal isolator with a CMOS output. It has a similar interface but better performance and higher package density than other optocouplers. The ISL71610SLHM is manufactured with Giant Magnetoresistive (GMR) technology for small size, high speed, and low power. A ceramic/polymer composite barrier provides excellent isolation and an unlimited barrier life. A series external resistor sets the input coil current and a capacitor in parallel with the current-limiting resi
A good PCB layout is crucial for optimal performance. Renesas recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital sections separate. Additionally, use short and wide traces for power and ground connections, and avoid vias under the device.
To ensure reliable operation in high-temperature environments, make sure to follow the recommended operating conditions, including the maximum junction temperature (Tj) of 150°C. Also, consider using a heat sink or thermal pad to dissipate heat, and ensure good airflow around the device.
The ISL71610SLHMBZ is a radiation-hardened device, but it still requires careful design and testing considerations. Ensure that your design meets the radiation requirements, and perform testing according to the recommended radiation test methods, such as Total Ionizing Dose (TID) and Single Event Effects (SEE).
To troubleshoot common issues, start by checking the input voltage, output voltage, and feedback connections. Ensure that the device is properly configured and that the output capacitor is suitable for the application. Also, check for any layout or component issues that may be causing oscillations or errors.
To mitigate EMI and RFI, use shielding, filtering, and grounding techniques. Ensure that the device is properly shielded, and use filters, such as ferrite beads or LC filters, to reduce noise. Also, use a solid ground plane and ensure that the device is properly grounded.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL71610SLHMBZ Overview

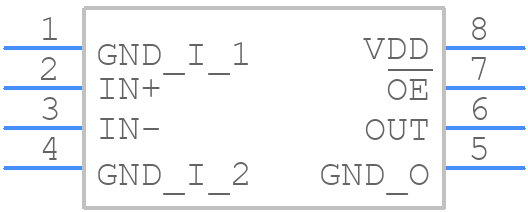

Use the download button to access the ISL71610SLHMBZ schematic symbol, PCB footprint, and 3D model.
