Description:The ISL76534 is a programmable gamma buffer for TFT-LCDs featuring ultra-low power operation. The ISL76534 contains an I2C programmable, 10-bit, 14-channel gamma reference voltage generator with buffered outputs, a 10-bit programmable VCOM calibrator, a high output current VCOM amplifier, and internal EEPROM to store all reference voltage data. The EEPROM features an endurance of 10, 000 write cycles and a data retention of 20 years at 105 °C. Combining gamma and VCOM reference voltage generators with low p
Renesas provides a recommended PCB layout in the ISL76534ARXZ-T7A evaluation board user manual, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
To ensure reliable start-up and shutdown, it is recommended to follow the power-up and power-down sequencing guidelines provided in the datasheet, and to use a soft-start circuit to limit the inrush current during power-up. Additionally, a voltage supervisor or reset IC can be used to monitor the supply voltage and ensure that the device is properly reset during power-up and power-down.
The maximum allowed voltage on the EN pin is VCC + 0.3V, as specified in the datasheet. Exceeding this voltage may damage the device. It is recommended to use a voltage divider or a level shifter to ensure that the EN pin voltage does not exceed the maximum allowed value.
To troubleshoot issues with the device's output voltage regulation, check the input voltage, output voltage, and feedback voltage using an oscilloscope or a multimeter. Verify that the output voltage is within the specified tolerance, and that the feedback voltage is within the expected range. Also, check for any signs of oscillation or instability in the output voltage, and ensure that the device is properly decoupled and filtered.
The ISL76534ARXZ-T7A is rated for operation up to 125°C, but it is recommended to derate the device's performance and ensure that the junction temperature does not exceed 125°C. This can be achieved by using a heat sink, reducing the output current, or improving the thermal design of the PCB. Consult the datasheet and the thermal design guidelines for more information.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL76534ARXZ-T7A Overview

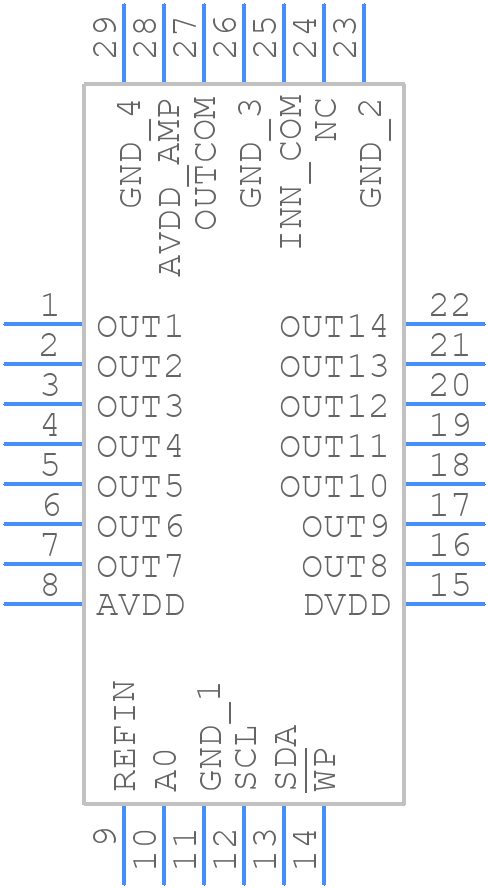

Use the download button to access the ISL76534ARXZ-T7A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL76,
or try a keyword search, such as Other Consumer ICs
