ISL78010ANZ - Renesas Electronics

Description: The ISL78010 is a multiple output regulator for use in all TFT-LCD automotive applications. It features a single boost converter with an integrated 2A FET, two positive LDOs for VON and VLOGIC generation, and a single negative LDO for VOFF generation. The boost converter can be programmed to operate in either P-mode for optimal transient response or PI-mode for improved load regulation. The ISL78010 includes fault protection for all four channels. Once a fault is detected on either the VBOOST, VON or VOFF c

Download ISL78010ANZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

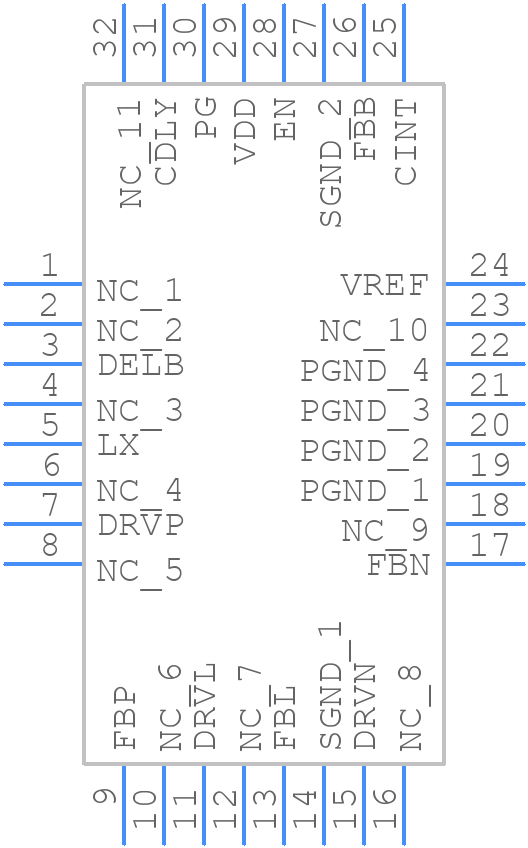

ISL78010ANZ - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ISL78010ANZ - Renesas Electronics PCB footprint - Quad Flat Packages - Quad Flat Packages - TQFP-32---
click to zoom
3D Models
ISL78010ANZ - Renesas Electronics - 3D model - Quad Flat Packages - TQFP-32---
click to zoom

ISL78010ANZ Details

  • Manufacturer Part Number:

    ISL78010ANZ

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TQFP

  • Package Description:

    TQFP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    Q32.5X5

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Additional Feature:

    O/P VOLTAGE IS 5.5V TO 20V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    3 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    S-PQFP-G32

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    20 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TFQFP

  • Package Equivalence Code:

    TQFP32,.28SQ

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    1100 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Pure Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

ISL78010ANZ Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout in the application note AN1965, which includes guidelines for component placement, thermal management, and routing to minimize noise and ensure optimal performance.
  • The output capacitor selection depends on the output voltage, output current, and desired ripple voltage. Renesas recommends using a low-ESR ceramic capacitor with a minimum capacitance of 10uF and a voltage rating of at least 1.5 times the output voltage. The application note AN1965 provides more detailed guidance on output capacitor selection.
  • The ISL78010ANZ is rated for operation from -40°C to +125°C ambient temperature range, but the maximum junction temperature (TJ) should not exceed +150°C. The device's thermal performance and reliability may be affected if operated outside this range.
  • Yes, the ISL78010ANZ is AEC-Q100 qualified and suitable for high-reliability and automotive applications. However, it's essential to follow the recommended design and layout guidelines, and to consult with Renesas' technical support team to ensure the device meets the specific requirements of your application.
  • Renesas provides a troubleshooting guide in the application note AN1965, which covers common issues and their possible causes. Additionally, Renesas' technical support team can provide further assistance and guidance to help resolve issues with the ISL78010ANZ.
