Description:The ISL78083 is a versatile multi-rail power IC comprised of a primary high voltage synchronous buck regulator, two secondary low voltage synchronous buck regulators, and an LDO regulator. It also offers four overvoltage and undervoltage monitors, three power-good indicators, and a reset output/fault indicator. To limit common-cause failures, the ISL78083 also includes a second reference for the OV/UV monitors, independent from the reference of the regulators. The ISL78083 is intended for high-density power
Renesas provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths.
To ensure stability, follow the datasheet's guidelines for component selection, such as choosing the correct output capacitor and resistor values. Additionally, make sure to decouple the input and output pins properly, and consider adding a small capacitor (e.g., 10nF) between the VIN and GND pins to filter out high-frequency noise.
The ISL78083ARZ-T7A has an operating temperature range of -40°C to +125°C, but the maximum ambient temperature range depends on the specific application and thermal design. It's recommended to follow the thermal design guidelines in the datasheet and consider the device's power dissipation and thermal resistance when designing the system.
Yes, the ISL78083ARZ-T7A is AEC-Q100 qualified, which makes it suitable for automotive applications. However, it's essential to follow the datasheet's guidelines and Renesas' recommendations for high-reliability designs, such as using the correct component derating, following proper PCB design and manufacturing guidelines, and ensuring the device operates within its specified temperature range.
To troubleshoot issues, start by verifying the input voltage, output voltage, and current consumption. Check the PCB layout and component values against the datasheet's recommendations. Use an oscilloscope to measure the output voltage ripple and noise. If the issue persists, consider using Renesas' evaluation boards or consulting with their technical support team for further assistance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL78083ARZ-T7A Overview

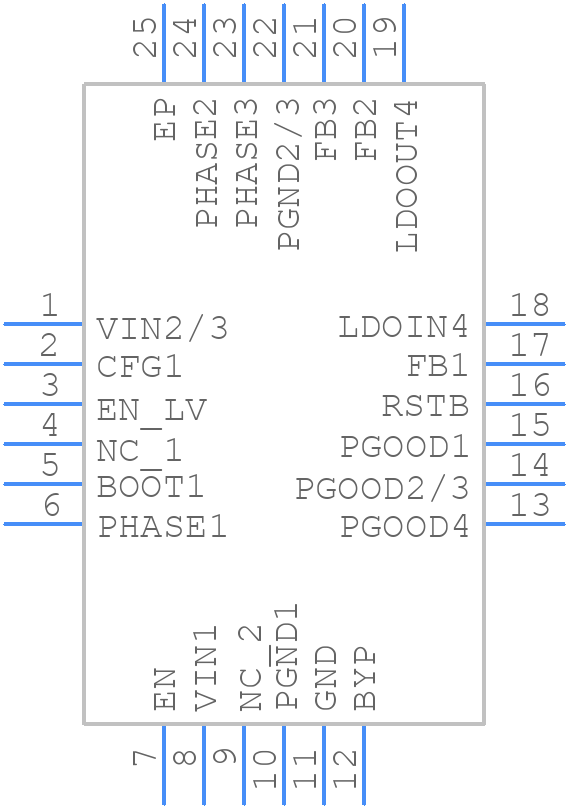

Use the download button to access the ISL78083ARZ-T7A schematic symbol, PCB footprint, and 3D model.
