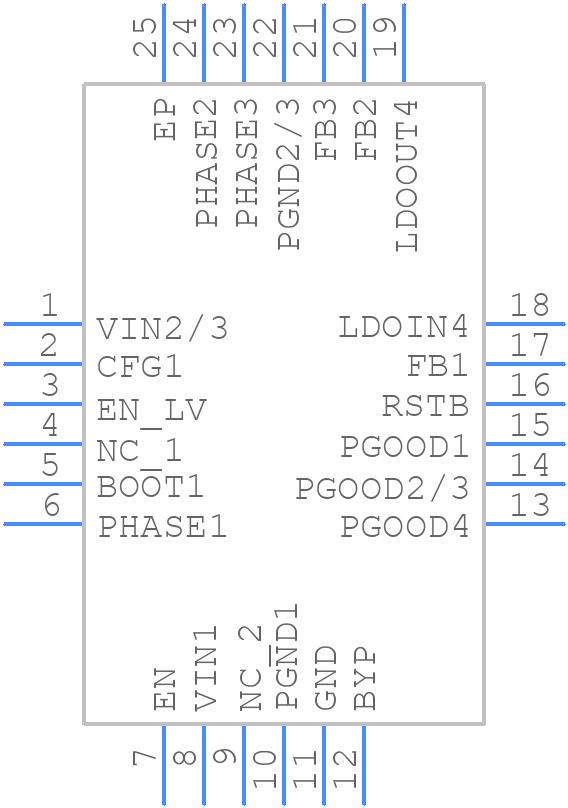

ISL78083ARZ - Renesas Electronics

ISL78083ARZ Details

• Manufacturer Part Number:

  ISL78083ARZ

• Brand Name:

  Renesas

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  SCQFN

• Package Description:

  SCQFN-24

• Pin Count:

  24

• Manufacturer Package Code:

  L24.4X4K

• Country Of Origin:

  Malaysia, Thailand

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Factory Lead Time:

  18 Weeks

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  7

• Adjustable Threshold:

  NO

• Analog IC - Other Type:

  INTEGRATED POWER MANAGEMENT UNIT

• JESD-30 Code:

  S-PQCC-N24

• JESD-609 Code:

  e3

• Length:

  4 mm

• Moisture Sensitivity Level:

  3

• Number of Channels:

  4

• Number of Functions:

  1

• Number of Terminals:

  24

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVQCCN

• Package Equivalence Code:

  LCC24,.16SQ,20

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• Seated Height-Max:

  1 mm

• Supply Voltage-Max (Vsup):

  42 V

• Supply Voltage-Min (Vsup):

  4 V

• Supply Voltage-Nom (Vsup):

  12 V

• Surface Mount:

  YES

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Threshold Voltage-Nom:

  +4.45V

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  4 mm
