ISL78083DEMO1Z footprint, schematic symbol and 3D model by Renesas Electronics

ISL78083DEMO1Z - Renesas Electronics

Description: The ISL78083DEMO1Z is used to demonstrate the performance of the ISL78083 multi-output DC/DC regulator comprised of a primary high voltage synchronous buck regulator, two secondary low voltage synchronous buck regulators, and a secondary low dropout linear regulator (LDO).The ISL78083 automotive camera power management IC is intended for high-density power applications, requiring few external components and minimal board space. The ISL78083 provides up to four regulated outputs with full protection and offe

Download ISL78083DEMO1Z Model

Schematic
symbols

PCB
footprints

3D
models

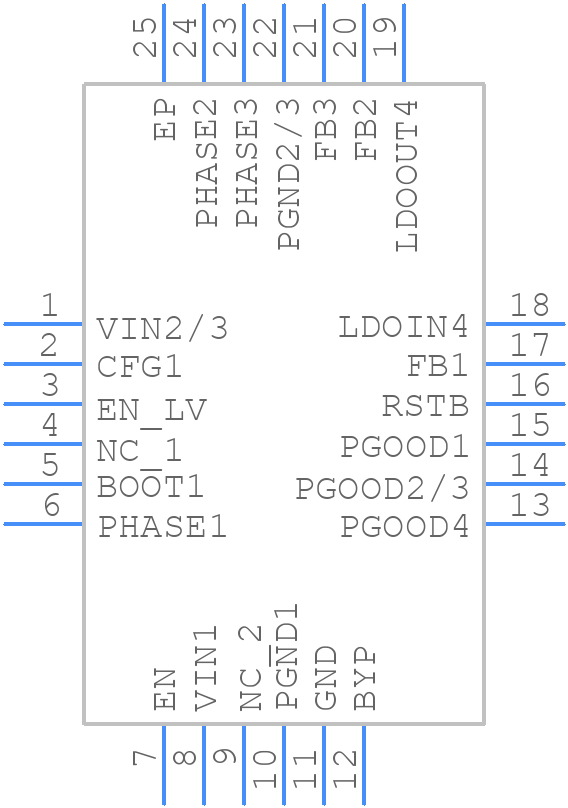

Symbol

click to zoom

PCB Footprints

ISL78083DEMO1Z - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - L24.4x4K-2021

click to zoom

3D Models

ISL78083DEMO1Z - Renesas Electronics - 3D model - Quad Flat No-Lead - L24.4x4K-2021

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for ISL78083DEMO1Z
Part Number ISL78083DEMO1Z
Manufacturer Renesas Electronics
Pin Count 25
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - L24.4x4K-2021
Released Date Apr 3, 2021
Last Modified Date Jan 29, 2025 12:30 PM UTC
Pinout / Pin List Click Here (Member Only)

ISL78083DEMO1Z Details

Manufacturer Part Number:
ISL78083DEMO1Z
Manufacturer:
Renesas Electronics Corporation

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

ISL78083DEMO1Z Overview

Use the download button to access the ISL78083DEMO1Z schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like ISL78, or try a keyword search, such as Power Management Circuits
