Description:The ISL78227 is an automotive grade (AEC-Q100 Grade 1), 2-phase, 55V synchronous boost controller that simplifies the design of high power boost applications. It integrates strong half-bridge drivers, an analog/digital tracking input, and comprehensive protection functions. The ISL78227 enables a simple, modular design for systems requiring power and thermal scalability. It offers peak-current mode control for fast line response and simple compensation. Its synchronous 2-phase architecture enables it to sup
Renesas provides a recommended PCB layout in the ISL78227ARZ evaluation board user manual, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure optimal heat dissipation.
Renesas recommends using the output filter design tool available on their website, which takes into account the specific requirements of the ISL78227ARZ and provides optimized component values for minimum ripple and noise. Additionally, the datasheet provides guidelines for output filter design and component selection.
While the datasheet specifies a maximum input voltage of 28V, Renesas recommends limiting input voltage transients to 30V for a maximum duration of 100ms to ensure reliable operation and prevent damage to the device.
Renesas recommends using a soft-start circuit to control the input voltage ramp rate during start-up, and a voltage supervisor or reset circuit to ensure reliable shutdown and power-on reset. The datasheet provides guidelines for soft-start circuit design and voltage supervisor selection.
Renesas recommends using a common-mode choke and X-capacitors in the input filter to minimize EMI emissions. The datasheet provides guidelines for EMI filter design and component selection, and the evaluation board user manual includes a recommended EMI filter design.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL78227ARZ Overview

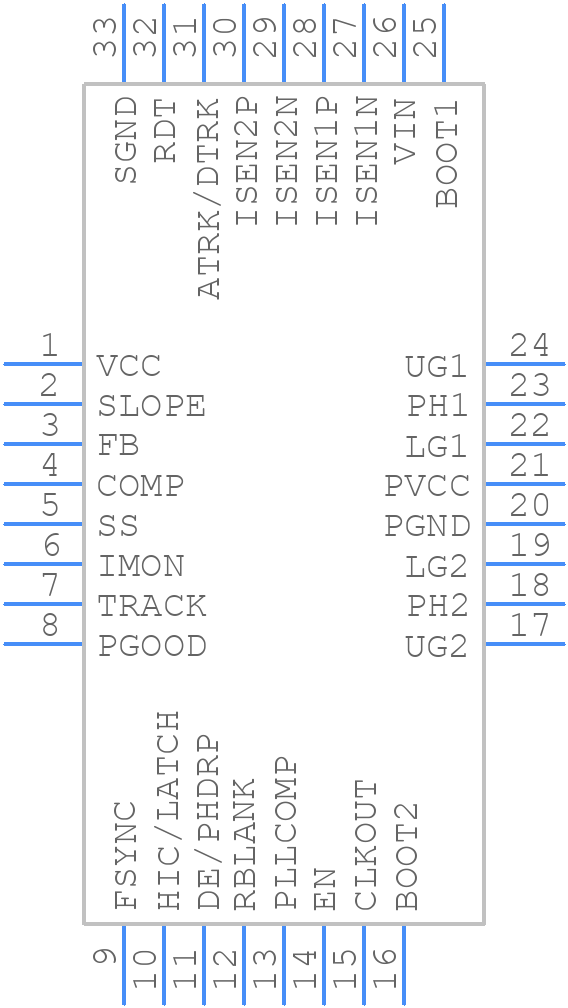

Use the download button to access the ISL78227ARZ schematic symbol, PCB footprint, and 3D model.
