Description:The ISL78419 is an integrated power management IC (PMIC) for TFT-LCDs used in central display, rear seat entertainment and virtual dashboards. The device integrates a boost converter for generating AVDD, an LDO regulator for VLOGIC. VON and VOFF are generated by a charge pump driven by the switch node of the boost converter. The ISL78419 also includes a VON slice circuit, reset function, and a high performance VCOM amplifier with a Digitally Controlled Potentiometer (DCP) that is used as a VCOM calibrator.
Renesas provides a recommended PCB layout guide in their application note AN1965, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure optimal performance.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, including derating the output current and voltage according to the temperature derating curves provided in the datasheet. Additionally, consider using thermal management techniques such as heat sinks or fans to keep the device within its recommended operating temperature range.
The ISL78419ARZ-T7A is designed to meet CISPR 25 Class 5 and FCC Part 15 Class B emissions standards. To minimize EMI and RFI, follow proper PCB layout and design practices, such as using a solid ground plane, minimizing loop areas, and using shielding and filtering components as necessary. Renesas also provides EMI and RFI design guidelines in their application notes.
Yes, the ISL78419ARZ-T7A can be used in redundant or parallel configurations to increase reliability and output current capability. However, it's essential to follow Renesas' guidelines for paralleling and redundancy, including using identical devices, matching output impedance, and ensuring proper synchronization and control.
Renesas provides reliability data and MTBF estimates for the ISL78419ARZ-T7A in their datasheet and reliability reports. The device is designed to meet high-reliability standards, with a typical MTBF of over 10 million hours. However, actual reliability and MTBF may vary depending on operating conditions, usage, and environmental factors.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL78419ARZ-T7A Overview

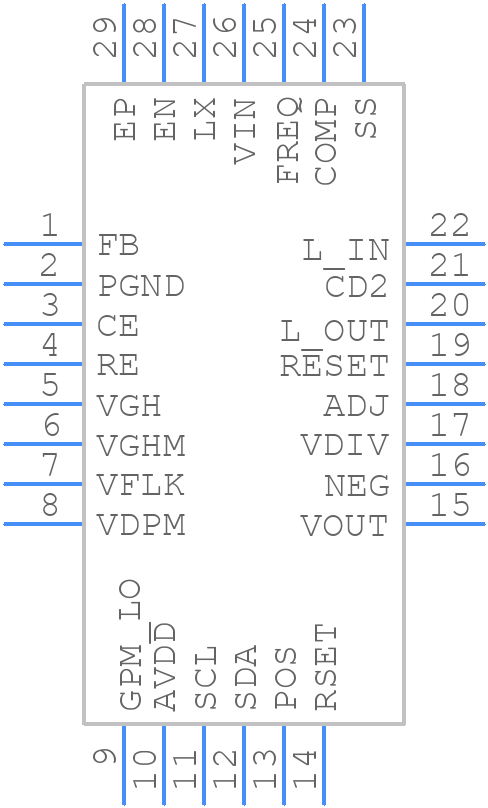

Use the download button to access the ISL78419ARZ-T7A schematic symbol, PCB footprint, and 3D model.
