Description:The ISL78419 is an integrated power management IC (PMIC) for TFT-LCDs used in central display, rear seat entertainment and virtual dashboards. The device integrates a boost converter for generating AVDD, an LDO regulator for VLOGIC. VON and VOFF are generated by a charge pump driven by the switch node of the boost converter. The ISL78419 also includes a VON slice circuit, reset function, and a high performance VCOM amplifier with a Digitally Controlled Potentiometer (DCP) that is used as a VCOM calibrator.
Renesas provides a recommended PCB layout guide in their application note AN1995, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
The selection of input and output capacitors depends on the specific requirements of your application, such as ripple current, voltage rating, and ESR. Renesas recommends using capacitors with low ESR and high ripple current capability, and provides guidance on capacitor selection in their application note AN1995.
While the datasheet specifies an operating temperature range of -40°C to 125°C, Renesas recommends derating the device for reliable operation above 85°C. The maximum ambient temperature range for reliable operation depends on the specific application and thermal management, but as a general rule, it's recommended to keep the junction temperature below 125°C.
Renesas provides troubleshooting guidelines in their application note AN1995, which includes steps to identify and resolve common issues such as oscillation or instability. This includes checking the PCB layout, component selection, and voltage regulator configuration.
The recommended settings for the soft-start and tracking features depend on the specific application requirements. Renesas provides guidance on setting the soft-start time and tracking configuration in their application note AN1995, and recommends consulting with their technical support team for specific guidance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL78419ARZ Overview

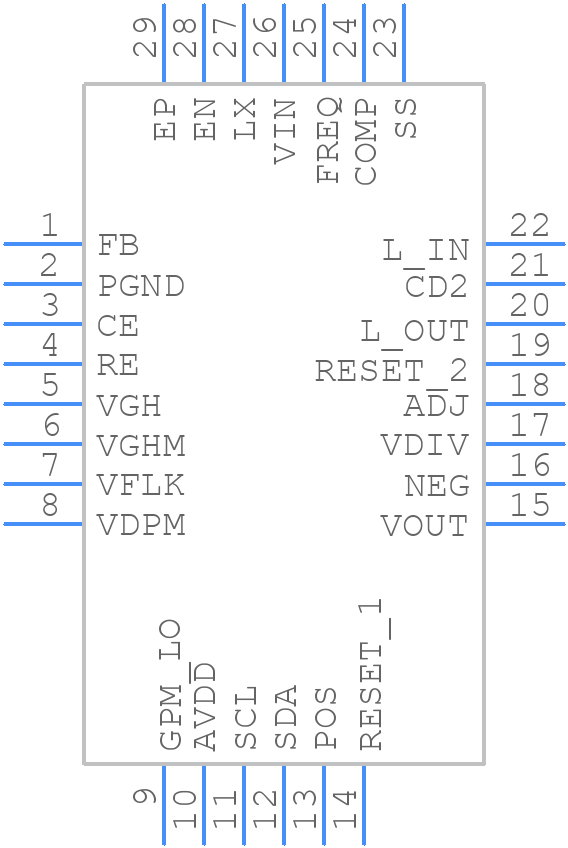

Use the download button to access the ISL78419ARZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL78,
or try a keyword search, such as Power Management Circuits
