Description:The ISL78600 Li-ion battery manager IC supervises up to 12 series-connected cells. The part provides accurate monitoring, cell balancing, and extensive system diagnostics functions. Three cell balancing modes are incorporated: Manual Balance mode, Timed Balance mode, and Auto Balance mode. The Auto Balance mode terminates balancing functions when a charge transfer value specified by the host microcontroller has been met. The ISL78600 communicates to a host microcontroller through an SPI interface and to oth
Renesas provides a recommended PCB layout guide in their application note AN1965, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
The ISL78600ANZ-T is rated for operation up to 125°C, but to ensure reliable operation in high-temperature environments, it's essential to follow proper thermal management practices, such as using a heat sink, ensuring good airflow, and avoiding thermal hotspots.
Using a different input capacitor value than recommended may affect the stability and performance of the device. A larger capacitor value can improve noise filtering but may increase startup time, while a smaller value may reduce startup time but compromise noise filtering. It's essential to evaluate the trade-offs and ensure the chosen capacitor value meets the specific application requirements.
To troubleshoot issues with output voltage regulation, check the input voltage, output load, and feedback network for proper configuration and operation. Verify that the output voltage is within the specified range and that the device is not in a fault condition. Consult the datasheet and application notes for guidance on troubleshooting and debugging techniques.
The ISL78600ANZ-T is designed to meet EMI and EMC requirements, but it's still essential to follow proper PCB layout and design practices to minimize radiated emissions and ensure immunity to electromagnetic interference. Consult the datasheet and application notes for guidance on EMI and EMC considerations.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL78600ANZ-T Overview

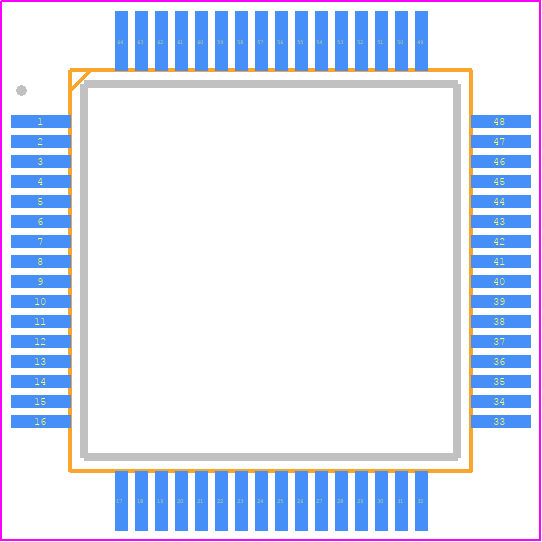

Use the download button to access the ISL78600ANZ-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL78,
or try a keyword search, such as Power Management Circuits
