Description:The ISL80020, ISL80020A, ISL80015 and ISL80015A are highly efficient, monolithic, synchronous step-down DC/DC converters that can deliver up to 2A of continuous output current from a 2. 7V to 5. 5V input supply. They use peak current mode control architecture to allow very low duty cycle operation. They operate at either 1MHz or 2MHz switching frequency, thereby providing superior transient response and allowing for the use of small inductors. They have excellent stability. The ISL80020, ISL80020A, ISL80015
Renesas provides a recommended PCB layout in the ISL80020 evaluation board user manual, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure optimal performance.
To ensure reliable startup and shutdown, it is recommended to follow the power-up and power-down sequencing guidelines in the datasheet, and to use a soft-start circuit to limit the inrush current during startup. Additionally, a capacitor should be placed between the VIN and GND pins to filter out noise and ensure stable operation.
The maximum allowed input voltage ripple for the ISL80020AFRZ-T is 10% of the nominal input voltage, as specified in the datasheet. Exceeding this limit may affect the device's performance and reliability.
The ISL80020AFRZ-T is rated for operation up to 125°C, but it is recommended to derate the output current and input voltage according to the thermal derating curve in the datasheet to ensure reliable operation in high-temperature environments.
To troubleshoot issues with output voltage regulation, check the input voltage, output load, and feedback resistors for correct values and connections. Also, verify that the device is operating within its specified temperature range and that the output capacitor is properly sized and connected.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL80020AFRZ-T Overview

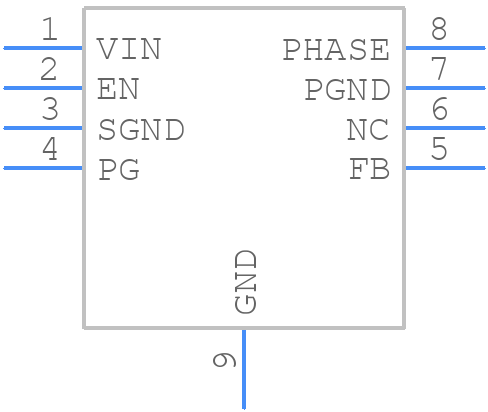

Use the download button to access the ISL80020AFRZ-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL80,
or try a keyword search, such as Switching Regulator or Controllers
