ISL8002AFRZ-T - Renesas Electronics

Description: The ISL8002, ISL8002A, ISL80019 and ISL80019A are highly efficient, monolithic, synchronous step-down DC/DC converters that can deliver up to 2A of continuous output current from a 2. 7V to 5. 5V input supply. They use peak current mode control architecture to allow very low duty cycle operation. They operate at either 1MHz or 2MHz switching frequency, thereby providing superior transient response and allowing for the use of small inductors. They also have excellent stability and provide both internal and e

Download ISL8002AFRZ-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

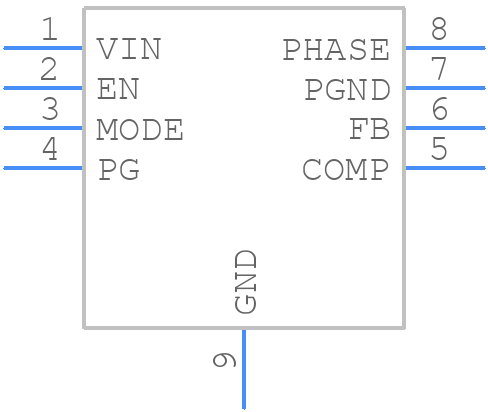

Symbol
ISL8002AFRZ-T - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ISL8002AFRZ-T - Renesas Electronics PCB footprint - Small Outline No-lead - Small Outline No-lead - L8.2x2C
click to zoom
3D Models
ISL8002AFRZ-T - Renesas Electronics - 3D model - Small Outline No-lead - L8.2x2C
click to zoom

ISL8002AFRZ-T Details

  • Manufacturer Part Number:

    ISL8002AFRZ-T

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TDFN

  • Package Description:

    TDFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    L8.2X2C

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Date Of Intro:

    2017-10-20

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    7

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.7 V

  • Input Voltage-Nom:

    3.6 V

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    4 A

  • Output Voltage-Max:

    5.5 V

  • Output Voltage-Min:

    0.6 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2300 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

ISL8002AFRZ-T Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout in the ISL8002AFRZ-T evaluation board user manual, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
  • The selection of input and output capacitors depends on the specific requirements of your application, including the input voltage range, output voltage, and ripple current. Renesas provides guidelines for capacitor selection in the datasheet, and additional resources are available in the application notes and FAQs.
  • The ISL8002AFRZ-T is rated for operation up to 125°C ambient temperature, but the maximum junction temperature (TJ) is 150°C. It's essential to ensure that the device is properly cooled and that the thermal design is adequate to prevent overheating.
  • Yes, the ISL8002AFRZ-T is qualified to the AEC-Q100 standard for automotive applications and is suitable for high-reliability applications. However, it's essential to review the device's qualification data and ensure that it meets the specific requirements of your application.
  • Renesas provides troubleshooting guidelines in the datasheet and application notes, which include steps to identify and resolve common issues. Additionally, Renesas offers technical support and resources, such as FAQs and knowledge base articles, to help engineers troubleshoot and resolve problems.
