Description:The ISL8002, ISL8002A, ISL80019 and ISL80019A are highly efficient, monolithic, synchronous step-down DC/DC converters that can deliver up to 2A of continuous output current from a 2. 7V to 5. 5V input supply. They use peak current mode control architecture to allow very low duty cycle operation. They operate at either 1MHz or 2MHz switching frequency, thereby providing superior transient response and allowing for the use of small inductors. They also have excellent stability and provide both internal and e
Renesas provides a recommended PCB layout in the ISL8002AIRZ-T evaluation board user manual, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
To ensure the device operates within the specified junction temperature range, it's essential to provide adequate heat sinking, use a thermal interface material (TIM) between the device and heat sink, and follow the recommended PCB layout guidelines. Additionally, monitor the device's thermal performance and adjust the system design as needed.
Renesas recommends using a low-ESR ceramic capacitor with a value of 10uF to 22uF for the input capacitor. This helps to filter out high-frequency noise and ensure stable operation. The capacitor should be placed as close to the VIN pin as possible to minimize parasitic inductance.
To troubleshoot issues with the enable pin (EN), verify that the EN pin is properly biased and that the voltage level is within the specified range. Also, check for any noise or ringing on the EN pin, and ensure that the EN pin is not being driven by multiple sources. If issues persist, consult the ISL8002AIRZ-T datasheet and application notes for further guidance.
Renesas recommends using a low-ESR ceramic capacitor with a value of 10uF to 22uF for the output capacitor. This helps to filter out high-frequency noise and ensure stable operation. The capacitor should be placed as close to the VOUT pin as possible to minimize parasitic inductance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL8002AIRZ-T Overview

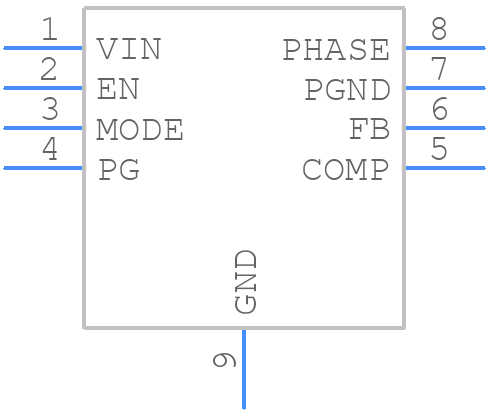

Use the download button to access the ISL8002AIRZ-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL80,
or try a keyword search, such as Switching Regulator or Controllers
