Description:The ISL8002B is a highly efficient, monolithic, synchronous step-down DC/DC converter that can deliver up to 2A of continuous output current from a 2. 7V to 5. 5V input supply. It uses peak current mode control architecture to allow very low duty cycle operation. ISL8002B operates at a 2MHz switching frequency, thereby providing superior transient response and allowing for the use of a small inductor. ISL8002B also has excellent stability. The ISL8002B integrates very low rDS(ON) MOSFETs in order to maximiz
Renesas provides a recommended PCB layout in the ISL8002BFRZ-T7A evaluation board user manual, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
To ensure the device operates within the specified junction temperature range, it's essential to provide adequate heat sinking, such as a thermal pad or heat sink, and to follow the recommended PCB layout guidelines. Additionally, monitoring the device's thermal performance and adjusting the system design as needed can help prevent overheating.
Renesas recommends using a low-ESR ceramic capacitor with a value of 10uF to 22uF for the input capacitor. This helps to filter out high-frequency noise and ensure stable operation. The exact value may vary depending on the specific application and input voltage range.
To troubleshoot issues with the enable pin (EN), check that the pin is properly connected to a logic-level signal source, and that the signal is within the specified voltage range. Also, ensure that the EN pin is not being driven by a signal with excessive slew rate or ringing, which can cause the device to malfunction.
Renesas recommends using a low-ESR ceramic capacitor with a value of 10uF to 47uF for the output capacitor. This helps to filter out high-frequency noise and ensure stable operation. The exact value may vary depending on the specific application and output voltage range.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL8002BFRZ-T7A Overview

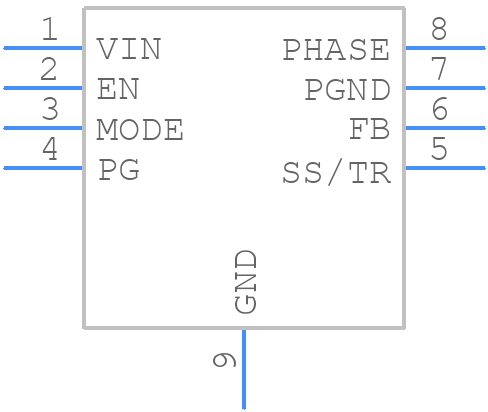

Use the download button to access the ISL8002BFRZ-T7A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL80,
or try a keyword search, such as Switching Regulator or Controllers
