Description:The ISL8002B is a highly efficient, monolithic, synchronous step-down DC/DC converter that can deliver up to 2A of continuous output current from a 2. 7V to 5. 5V input supply. It uses peak current mode control architecture to allow very low duty cycle operation. ISL8002B operates at a 2MHz switching frequency, thereby providing superior transient response and allowing for the use of a small inductor. ISL8002B also has excellent stability. The ISL8002B integrates very low rDS(ON) MOSFETs in order to maximiz
Renesas provides a recommended PCB layout in the ISL8002BIRZ-T evaluation board user manual, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure optimal performance.
To ensure reliable startup and shutdown, it is recommended to follow the power-up and power-down sequencing guidelines provided in the datasheet, and to use a soft-start circuit to limit the inrush current during startup.
Operating the device beyond the recommended operating conditions can lead to reduced reliability, decreased performance, and potentially even damage to the device. It is essential to ensure that the device operates within the specified temperature, voltage, and current ranges to guarantee optimal performance and reliability.
Renesas provides a troubleshooting guide in the ISL8002BIRZ-T datasheet, which includes steps to identify and resolve common issues. Additionally, engineers can use oscilloscopes and other diagnostic tools to analyze the device's behavior and identify the root cause of the problem.
The ISL8002BIRZ-T is designed to meet EMI and EMC standards, but engineers should still take precautions to minimize electromagnetic interference and ensure electromagnetic compatibility in their designs. This includes using proper shielding, filtering, and layout techniques, as well as following Renesas' guidelines for EMI and EMC compliance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL8002BIRZ-T Overview

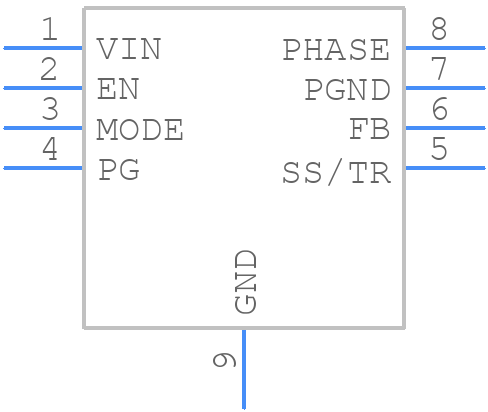

Use the download button to access the ISL8002BIRZ-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL80,
or try a keyword search, such as Switching Regulator or Controllers
