Description:The ISL8002, ISL8002A, ISL80019 and ISL80019A are highly efficient, monolithic, synchronous step-down DC/DC converters that can deliver up to 2A of continuous output current from a 2. 7V to 5. 5V input supply. They use peak current mode control architecture to allow very low duty cycle operation. They operate at either 1MHz or 2MHz switching frequency, thereby providing superior transient response and allowing for the use of small inductors. They also have excellent stability and provide both internal and e
Renesas provides a recommended PCB layout in the ISL8002FRZ-T evaluation board user manual, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure optimal performance.
The ISL8002FRZ-T requires a proper bias voltage on the VIN pin during startup. Ensure that the input voltage is within the recommended range (2.7V to 5.5V) and that the EN pin is pulled high to enable the device. Additionally, add a capacitor between VIN and GND to filter out noise and ensure a stable input voltage.
The ISL8002FRZ-T is capable of delivering up to 2A of output current. However, the actual output current capability may be limited by the input voltage, output voltage, and thermal conditions. Refer to the datasheet for detailed information on output current capability under various operating conditions.
The ISL8002FRZ-T has built-in overvoltage protection (OVP) and undervoltage lockout (UVLO) features. However, it is still recommended to add external protection components, such as a TVS diode or a voltage supervisor, to ensure the device is protected from voltage transients and faults.
Renesas recommends using a high-quality, low-ESR ceramic capacitor (X5R or X7R dielectric) with a value of 10uF to 22uF between the VIN pin and GND. This helps to filter out input noise and ensure a stable input voltage.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL8002FRZ-T Overview

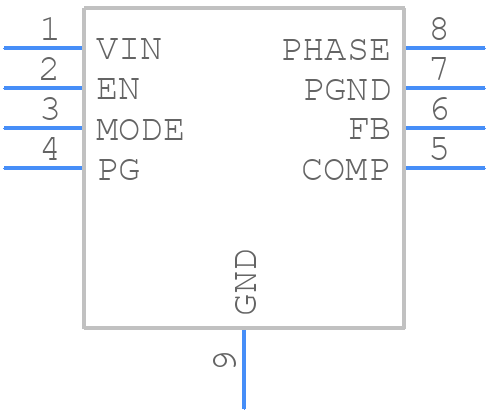

Use the download button to access the ISL8002FRZ-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL80,
or try a keyword search, such as Switching Regulator or Controllers
