Description:The ISL8002, ISL8002A, ISL80019 and ISL80019A are highly efficient, monolithic, synchronous step-down DC/DC converters that can deliver up to 2A of continuous output current from a 2. 7V to 5. 5V input supply. They use peak current mode control architecture to allow very low duty cycle operation. They operate at either 1MHz or 2MHz switching frequency, thereby providing superior transient response and allowing for the use of small inductors. They also have excellent stability and provide both internal and e
The ISL8002IRZ-T can handle input voltages up to 18V, but it's recommended to operate within the specified input voltage range of 6.5V to 14V for optimal performance and reliability.
To ensure the stability of the output voltage, it's essential to follow the recommended layout and component selection guidelines, including the use of a suitable output capacitor and a stable input voltage. Additionally, the output voltage can be adjusted using the FB pin and an external resistor divider network.
The ISL8002IRZ-T can provide a maximum output current of 2A, but this may vary depending on the input voltage, output voltage, and ambient temperature. It's essential to check the datasheet for the recommended operating conditions and thermal derating.
To protect the ISL8002IRZ-T from overheating, ensure that the device is operated within the recommended temperature range of -40°C to 125°C, and that the thermal pad is properly connected to a heat sink or a thermal plane. Additionally, follow the recommended layout and thermal design guidelines to minimize thermal resistance.
Yes, the ISL8002IRZ-T is suitable for high-reliability applications, such as automotive, industrial, and medical devices. However, it's essential to follow the recommended design and manufacturing guidelines, and to perform thorough testing and validation to ensure the device meets the required reliability standards.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL8002IRZ-T Overview

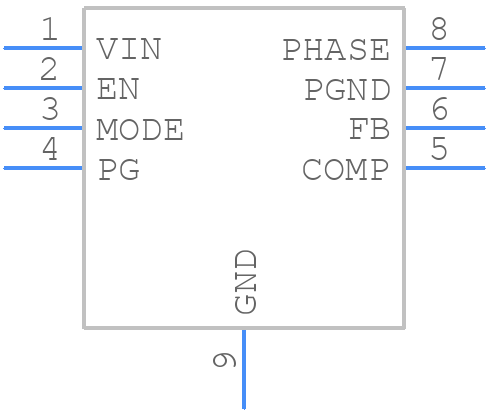

Use the download button to access the ISL8002IRZ-T schematic symbol, PCB footprint, and 3D model.
