Description:The ISL80030, ISL80030A, ISL80031, and ISL80031A are highly efficient, monolithic, synchronous step-down DC/DC converters that can deliver up to 3A of continuous output current from a 2. 7V to 5. 5V input supply. They use peak current mode control architecture to allow very low duty cycle operation. These devices operate at either a 1MHz or 2MHz switching frequency, thereby providing superior transient response and allowing for the use of small inductors. They also have excellent stability. The ISL80030, IS
A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, using a 2-layer or 4-layer board, and minimizing the distance between the device and the thermal pad or heat sink.
To ensure the device operates within the recommended operating conditions, monitor the input voltage, output voltage, and output current to ensure they are within the specified ranges. Also, ensure the device is operated within the recommended temperature range.
When handling the device, take precautions to prevent electrostatic discharge (ESD) damage. Use an ESD wrist strap or mat, and handle the device by the body or pins, not the leads.
To troubleshoot issues with the device, start by checking the input voltage, output voltage, and output current. Verify that the device is operated within the recommended operating conditions. Check for any signs of overheating, and ensure the device is properly soldered to the PCB.
The device has a thermal pad on the bottom side, which should be connected to a thermal pad or heat sink on the PCB to ensure optimal thermal performance. Ensure good thermal conductivity between the device and the thermal pad or heat sink.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL80030AFRZ-T7A Overview

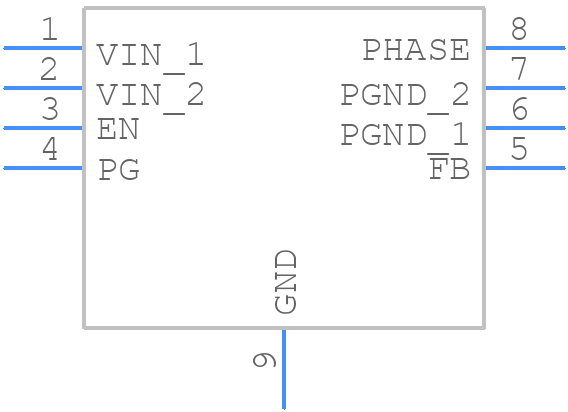

Use the download button to access the ISL80030AFRZ-T7A schematic symbol, PCB footprint, and 3D model.
