ISL80030FRZ-T - Renesas Electronics

Description: The ISL80030, ISL80030A, ISL80031, and ISL80031A are highly efficient, monolithic, synchronous step-down DC/DC converters that can deliver up to 3A of continuous output current from a 2. 7V to 5. 5V input supply. They use peak current mode control architecture to allow very low duty cycle operation. These devices operate at either a 1MHz or 2MHz switching frequency, thereby providing superior transient response and allowing for the use of small inductors. They also have excellent stability. The ISL80030, IS

Download ISL80030FRZ-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

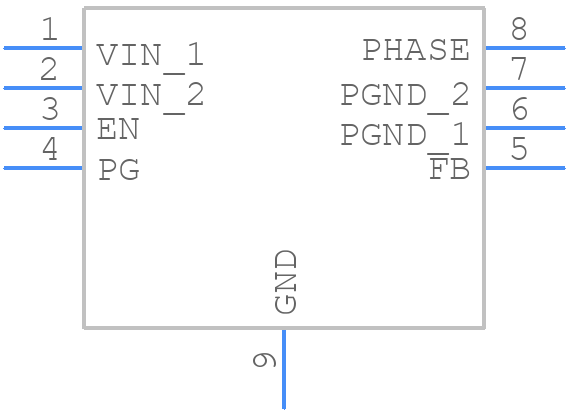

ISL80030FRZ-T - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ISL80030FRZ-T - Renesas Electronics PCB footprint - Small Outline No-lead - Small Outline No-lead - 8 Ld DFN
click to zoom
3D Models
ISL80030FRZ-T - Renesas Electronics - 3D model - Small Outline No-lead - 8 Ld DFN
click to zoom

ISL80030FRZ-T Details

  • Manufacturer Part Number:

    ISL80030FRZ-T

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DFN

  • Package Description:

    DFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    L8.2X2E

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Date Of Intro:

    2017-11-16

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    7

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.7 V

  • Input Voltage-Nom:

    3.6 V

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    5.4 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2300 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

ISL80030FRZ-T Frequently Asked Questions (FAQs)

  • The ISL80030FRZ-T can handle a maximum input voltage of 18V, but it's recommended to operate within the specified input voltage range of 6.5V to 14V for optimal performance and reliability.
  • To ensure the stability of the output voltage, it's essential to follow the recommended layout guidelines, use a sufficient output capacitor, and ensure that the input voltage is within the specified range. Additionally, the output voltage can be adjusted using the FB pin, and the output voltage tolerance can be improved by using a voltage reference IC.
  • The ISL80030FRZ-T can provide a maximum output current of 3A, but it's recommended to operate within the specified output current range of 0.1A to 2.5A for optimal performance and reliability.
  • To protect the ISL80030FRZ-T from overheating, it's essential to ensure good thermal design, use a sufficient heat sink, and operate within the specified temperature range of -40°C to 125°C. Additionally, the device has built-in thermal protection, which will shut down the device if the junction temperature exceeds 150°C.
  • The EN (Enable) pin is used to enable or disable the device. When the EN pin is pulled high, the device is enabled, and when it's pulled low, the device is disabled. This pin can be used to implement power sequencing, shutdown, or low-power modes.
