Description:ISL8011 is an integrated FET, 1.2A synchronous buck regulator for general purpose point-of load applications. It is optimized for generating low output voltages down to 0.8V. The supply voltage range is from 2.7V to 5.5V allowing the use from common 3.3V or 5V supply rails and Lithium ion battery inputs. It has guaranteed minimum output current of 1.2A. 1.5MHz pulse-width modulation (PWM) switching frequency allowing the use of small external components. The ISL8011 includes a pair of low ON-resistance P-Ch
A good PCB layout for the ISL8011IRZ-T involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a separate power plane for the input and output voltages to reduce noise and improve performance.
To ensure the stability of the output voltage, it's essential to choose the right output capacitor value and type. A minimum output capacitance of 10uF is recommended, and the capacitor should have a low ESR (Equivalent Series Resistance) to minimize voltage ripple. Additionally, the output voltage can be further stabilized by adding a small ceramic capacitor (e.g., 1uF) in parallel with the main output capacitor.
Although the datasheet specifies a maximum input voltage of 6.5V, the device can handle input voltages up to 7V for short durations (e.g., during power-up or voltage transients). However, it's recommended to keep the input voltage below 6.5V for continuous operation to ensure reliable performance and prevent damage to the device.
The ISL8011IRZ-T is rated for operation up to 125°C, but its performance may degrade at high temperatures. It's essential to consider the device's power dissipation, thermal resistance, and junction temperature when operating in high-temperature environments. Additionally, the device's output voltage and current may need to be derated to ensure reliable operation.
To troubleshoot issues with the ISL8011IRZ-T, start by checking the input voltage, output voltage, and output current using an oscilloscope or multimeter. Verify that the input and output capacitors are properly connected and meet the recommended specifications. Check for any signs of overheating, such as excessive temperature rise or thermal shutdown. If the issue persists, consult the datasheet and application notes for guidance, or contact Renesas Electronics Corporation's technical support for further assistance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL8011IRZ-T Overview

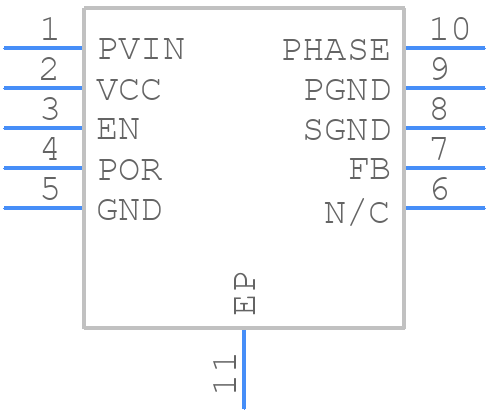

Use the download button to access the ISL8011IRZ-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL80,
or try a keyword search, such as Switching Regulator or Controllers
