Description:The ISL8016 is a high efficiency, monolithic, synchronous step-down DC/DC converter that can deliver up to 6A continuous output current from a 2. 7V to 5. 5V input supply. The output voltage is adjustable from 0. 6V to VIN. With an adjustable current limit, reverse current protection, pre-bias start and over temperature protection the ISL8016 offers a highly robust power solution. It uses current control architecture to deliver fast transient response and excellent loop stability. The ISL8016 integrates a p
Renesas provides a recommended PCB layout in the ISL8016IR25Z-T evaluation board user manual, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
The ISL8016IR25Z-T has a power-on reset (POR) circuit that ensures the device is properly reset during power-up. Additionally, the device has a configurable enable pin (EN) that can be used to control the power-up sequence. It is recommended to follow the power-up sequence and configuration guidelines provided in the datasheet and application notes.
The ISL8016IR25Z-T can drive capacitive loads up to 10uF, but it is recommended to limit the capacitive load to 4.7uF or less to ensure stable operation and minimize ringing on the output.
Renesas provides a troubleshooting guide in the ISL8016IR25Z-T datasheet and application notes, which includes steps to identify and resolve common issues. Additionally, engineers can use oscilloscopes and other diagnostic tools to measure the device's output voltage, current, and other parameters to identify the root cause of the issue.
Renesas recommends using a combination of techniques to mitigate EMI, including using a ferrite bead on the input, adding decoupling capacitors, and using a shielded inductor. Additionally, the device's switching frequency can be adjusted to minimize EMI emissions.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ISL8016IR25Z-T Overview

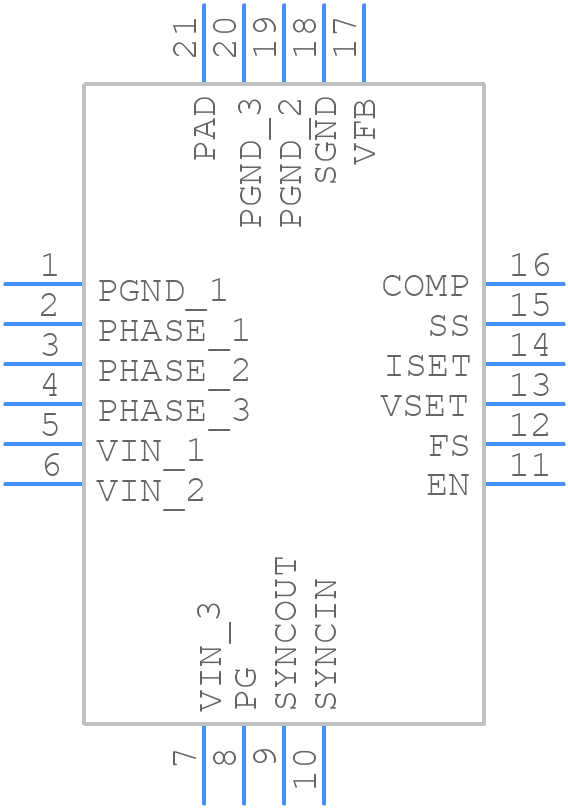

Use the download button to access the ISL8016IR25Z-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ISL80,
or try a keyword search, such as Switching Regulator or Controllers
